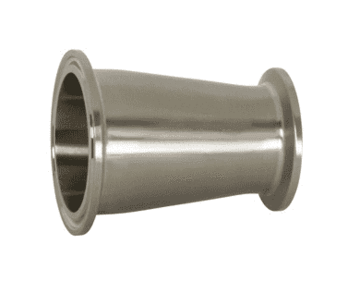

B3114MP-G600250 Dixon Valve 304 Stainless Steel Sanitary Clamp Concentric Reducer - 6" x 2-1/2" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) |
|---|---|---|---|
| A | |||
| B3114MP-G150100 | 1-1/2" x 1" | 3.00" | 0.3400 |
| B3114MP-G200100 | 2" x 1" | 5.00" | 0.6050 |
| B3114MP-G200150 | 2" x 1-1/2" | 3.00" | 0.4100 |
| B3114MP-G250150 | 2-1/2" x 1-1/2" | 5.00" | 0.7100 |
| B3114MP-G250200 | 2-1/2" x 2" | 3.00" | 0.5500 |
| B3114MP-G300100 | 3" x 1" | 9.00" | 1.2500 |
| B3114MP-G300150 | 3" x 1-1/2" | 7.00" | 1.2900 |
| B3114MP-G300200 | 3" x 2" | 5.00" | 0.9330 |
| B3114MP-G300250 | 3" x 2-1/2" | 3.00" | 0.6945 |
| B3114MP-G400150 | 4" x 1-1/2" | 11.13" | 2.4500 |
| B3114MP-G400200 | 4" x 2" | 9.13" | 2.5200 |
| B3114MP-G400250 | 4" x 2-1/2" | 7.13" | 1.6405 |
| B3114MP-G400300 | 4" x 3" | 5.13" | 1.6000 |
| B3114MP-G600200 | 6" x 2" | 6.88" | 3.1500 |
| B3114MP-G600250 | 6" x 2-1/2" | - | - |
| B3114MP-G600300 | 6" x 3" | 6.88" | 4.9000 |
| B3114MP-G600400 | 6" x 4" | 7.000" | 4.5650 |
| B3114MP-G800400 | 8" x 4" | 7.50" | 4.8000 |
| B3114MP-G800600 | 8" x 6" | 7.75" | 14.0000 |
