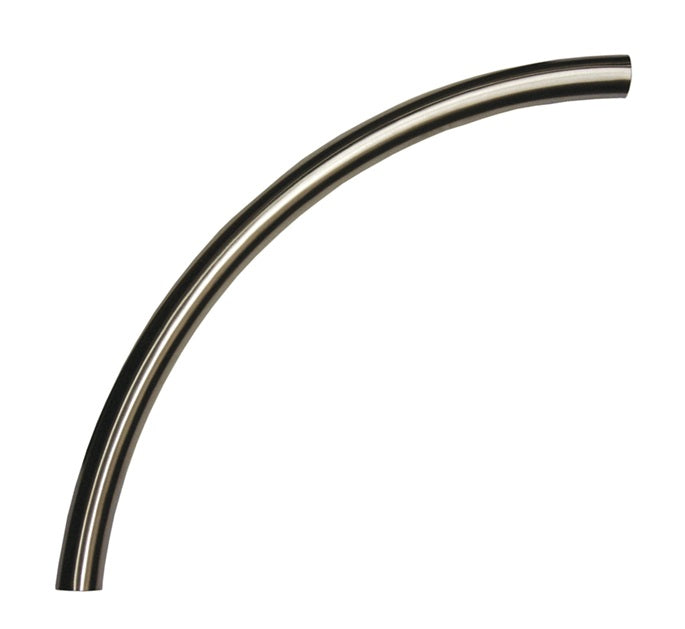

B2SXL24-R250 Dixon Valve Sanitary Polished 90° Sweep Buttweld Elbow with 24" Center Line Radius - 2-1/2" - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Notes: | |||
|---|---|---|---|
|
|||
| Material: | |||
|
| Part Number | Size | Wall Thickness | Dimensions  |
|||
|---|---|---|---|---|---|---|
| A | R | OD | WT | |||
| B2SXL24-R150 | 1-1/2" | 0.065" | 24.0" | 24.0" | 1.50" | 0.07" |
| B2SXL24-R200 | 2" | 0.065" | 24.0" | 24.0" | 2.00" | 0.07" |
| B2SXL24-R250 | 2-1/2" | 0.065" | 24.0" | 24.0 | 2.50" | 0.07" |
| B2SXL24-R300 | 3" | 0.065" | 24.0" | 24.0" | 3.00" | 0.07" |
| B2SXL24-R400 | 4" | - | 24.0" | 24.0" | 4.00" | - |
| B2SXL24-R600 | 6" | - | 24.0" | 24.0" | 6.00" | - |
