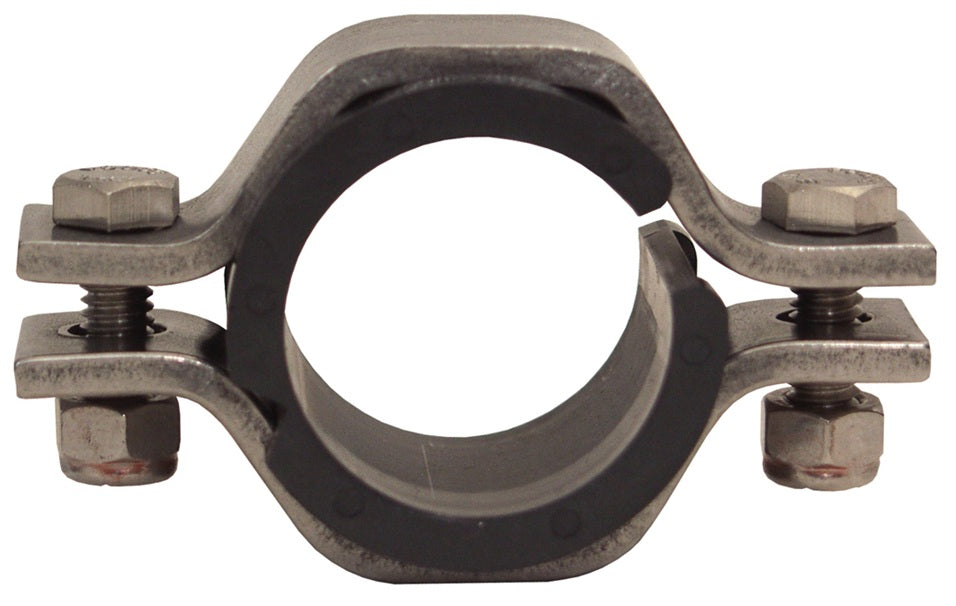

B24HS-G250 Dixon Valve 304 Stainless Steel Sanitary Hex Tube Hanger with High Temperature Polysulfone Sleeve - 2-1/2" Tube OD

B24HS-G250 Dixon Valve 304 Stainless Steel Sanitary Hex Tube Hanger with High Temperature Polysulfone Sleeve - 2-1/2" Tube OD

Sale price$20.39

Dixon Sanitary Fittings Sanitary Tube Hanger - Hex Tube Hanger with High Temperature Polysulfone Sleeve - 304 Stainless Steel

Maximum temperature: 325°F (163°C)
Buy More, Save More!
Quantity Price Each
10–39 $19.17
40–79 $17.33
80+ $15.29
Discounts applied in cart/checkout.

Product Data:
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Dimensions
Weight (Lbs.)
A B
B24HS-G50 1/2" 2.375" 1.062" 0.2300
B24HS-G75 3/4" 2.625" 1.188" 0.2500
B24HS-G100 1" 2.688" 1.563" 0.2750
B24HS-G150 1-1/2" 3.625" 2.125" 0.5500
B24HS-G200 2" 4.625" 2.625" 0.6800
B24HS-G250 2-1/2" 4.813" 3.125" 0.7500
B24HS-G300 3" 5.375" 3.625" 0.9100
B24HS-G400 4" 6.625" 4.625" 1.1150
B24HS-G600 6" 9.000" 6.625" -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
