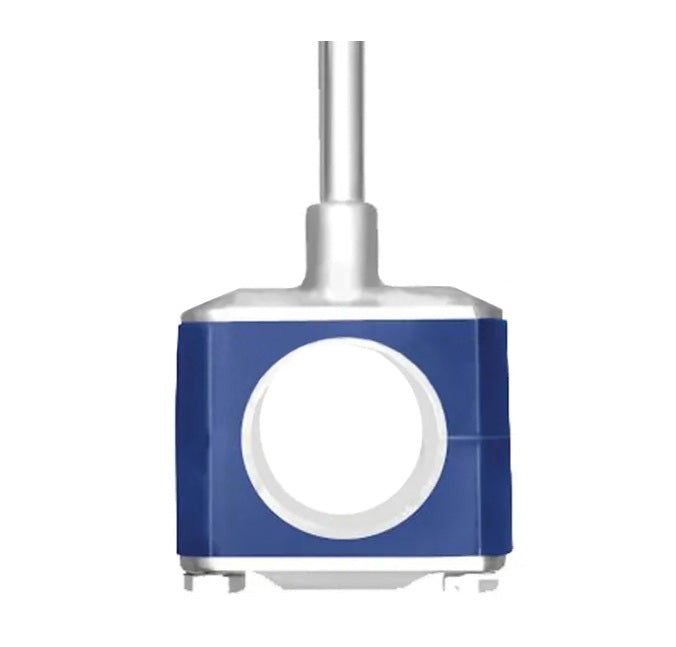

B24-HP-G250 Dixon Valve Sanitary Hang Plate Tube Block Hanger - 2-1/2" Tube OD - Stainless Steel with Silicone Insert

B24-HP-G250 Dixon Valve Sanitary Hang Plate Tube Block Hanger - 2-1/2" Tube OD - Stainless Steel with Silicone Insert

Sale price$57.81

Dixon Sanitary Fittings Sanitary Hang Plate Tube Block Hanger

For use in Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Buy More, Save More!
Quantity Price Each
10–39 $54.34
40–79 $49.14
80+ $43.36
Discounts applied in cart/checkout.

Product Data:
Features:
  • Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket.
  • There are no exposed threads or openings in hardware plates.
  • All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product.
  • Hanger threads match MSS 69 rod OD requirements
  • Temperature Range: -40°F to 320°F (-40°C to 160°C).
Construction:
  • One piece silicone insert - 80 durometer
  • Hardware: 304 & 316 stainless steel
Part Number Tube OD Weight(Lbs.)
B24-HP-G050 1/2" 0.2800
B24-HP-G075 3/4" 0.2800
B24-HP-G100 1" 0.2600
B24-HP-G150 1-1/2" 0.3600
B24-HP-G200 2" 0.5000
B24-HP-G250 2-1/2" 0.5400
B24-HP-G300 3" 0.7400
B24-HP-G400 4" 1.2000
