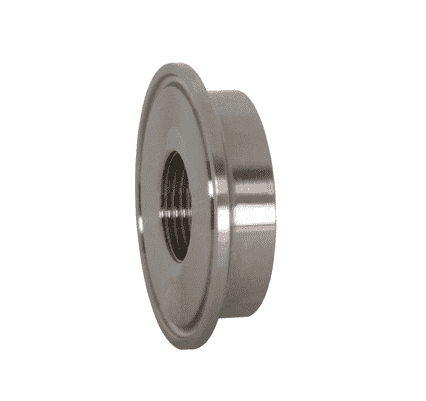

B23BMP-R10025 Dixon Valve 316L Stainless Steel Sanitary Thermometer Cap - 1" Tube OD - 1/4" NPT Tap Size
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Material: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Tap Size | Dimensions  |
Weight(Lbs.) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| B23BMP-R7518 | 3/4" | 1/8" NPT | - | - | - | 1/8" | 1.0000 |
| B23BMP-R100 | 1" | 1/2" NPT | 1.99" | 1.50" | 0.63" | 1/2" | 0.2900 |
| B23BMP-R10025 | 1" | 1/4" NPT | - | - | - | 1/4" | - |
| B23BMP-R150 | 1-1/2" | 3/4" NPT | 1.99" | 1.50" | 0.63" | 3/4" | 0.2400 |
| B23BMP-R15025 | 1-1/2" | 1/4" NPT | - | - | - | 1/4" | 0.2500 |
| B23BMP-R15050 | 1-1/2" | 1/2" NPT | - | - | - | 1/2" | - |
| B23BMP-R150100 | 1-1/2" | 1" NPT | - | - | - | 1" | - |
| B23BMP-R150125 | 1-1/2" | 1/8" NPT | - | - | - | 1/8" | - |
| B23BMP-R200 | 2" | 3/4" NPT | 2.52" | 2.00" | 0.63" | 3/4" | 0.5115 |
|
B23BMP-R200BLK (Blank) |
2" | - | - | - | - | - | 0.5115 |
| B23BMP-R20025 | 2" | 1/4" NPT | - | - | - | 1/4" | 0.8500 |
| B23BMP-R20050 | 2" | 1/2" NPT | - | - | - | 1/2" | 0.5115 |
| B23BMP-R200100 | 2" | 1" NPT | - | - | - | 1" | - |
| B23BMP-R200150 | 2" | 1-1/2" NPT | - | - | - | 1-1/2" | - |
| B23BMP-R250 | 1-1/2" | 3/4" NPT | 3.05" | 2.50" | 0.63" | 3/4" | 0.8400 |
| B23BMP-R300 | 3" | 3/4" NPT | 3.58" | 3.00" | 0.63" | 3/4" | 1.2550 |
| B23BMP-R30050 | 3" | 1/2" NPT | - | - | - | 1/2" | 1.2600 |
| B23BMP-R400 | 4" | 3/4" NPT | 4.68" | 4.00" | 0.63" | 3/4" | 2.3500 |
