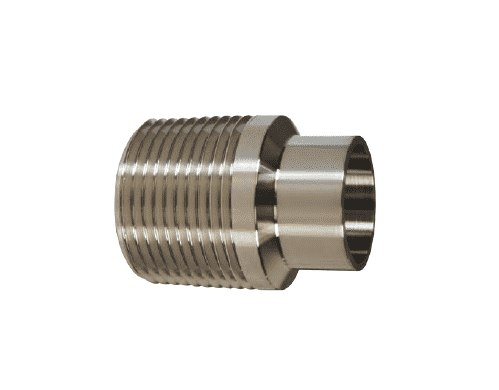

B19WB-G600 Dixon Valve 304 Stainless Steel Sanitary Unpolished Male NPT x Weld End Adapter - 6" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Nominal Wall | Dimensions
|
|||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| - | B19WB-R50 | 1/2" | 0.065" | 1.630" | 0.500" | 0.370" | 0.500" |
| - | B19WB-R75 | 3/4" | 0.065" | 1.630" | 0.750" | 0.620" | 0.820" |
| B19WB-G100 | B19WB-R100 | 1" | 0.065" | 1.750" | 1.000" | 0.870" | 1.000" |
| B19WB-G150 | B19WB-R150 | 1-1/2" | 0.065" | 1.750" | 1.500" | 1.370" | 1.600" |
| B19WB-G200 | B19WB-R200 | 2" | 0.065" | 1.810" | 2.000" | 1.870" | 2.000" |
| B19WB-G250 | - | 2-1/2" | 0.065" | 2.310" | 2.500" | 2.370" | 2.500" |
| B19WB-G300 | B19WB-R300 | 3" | 0.065" | 2.500" | 3.000" | 2.870" | 3.000" |
| B19WB-G400 | B19WB-R400 | 4" | 0.083" | 2.560" | 4.000" | 3.830" | 4.000" |
| B19WB-G600 | - | 6" | - | - | - | - | - |
