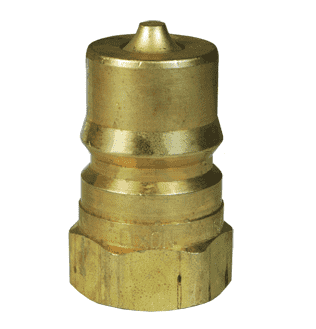

PS-H12F12-B Dixon Valve 1-1/2" NPT Steam Quick Disconnect Poppet Valve Plug - Brass (Old Part #: B17-1200S)

PS-H12F12-B Dixon Valve 1-1/2" NPT Steam Quick Disconnect Poppet Valve Plug - Brass (Old Part #: B17-1200S)

Sale price$222.37

Steam Quick Disconnect Couplings - Poppet Valve Plug - Brass

In stock
Buy More, Save More!
Quantity Price Each
5–19 $209.03
20–59 $189.01
60+ $177.90
Discounts applied in cart/checkout.
Applications:
  • Designed exclusively for steam applications.
Features:
  • Two ethylene propylene O-rings in the coupler and one ethylene propylene O-ring in the plug provide double protection against leaks.
  • Coupler has a large sleeve especially designed for easier gripping with gloves.
  • Solid brass
  • Stainless steel springs and locking balls
  • Ethylene propylene O-rings.
  • Warning: Do Not Disconnect Under Pressure!
  • Note: Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Part Number Size Seal Saturated Steam Pressure (PSI) Temp. Rating Weight (Lbs.)
HS2F2-B 1/4" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.0800
HS3F3-B 3/8" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.1400
HS4F4-B 1/2" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.2500
HS6F6-B 3/4" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.4800
HS8F8-B 1" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.8400
PS-H12F12-B 1-1/2" Ethylene Propylene O-rings 100 PSIG 330 deg. F 3.1000

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Male ISO-B QD Interchange
  • 1-1/2in Female NPTF
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
