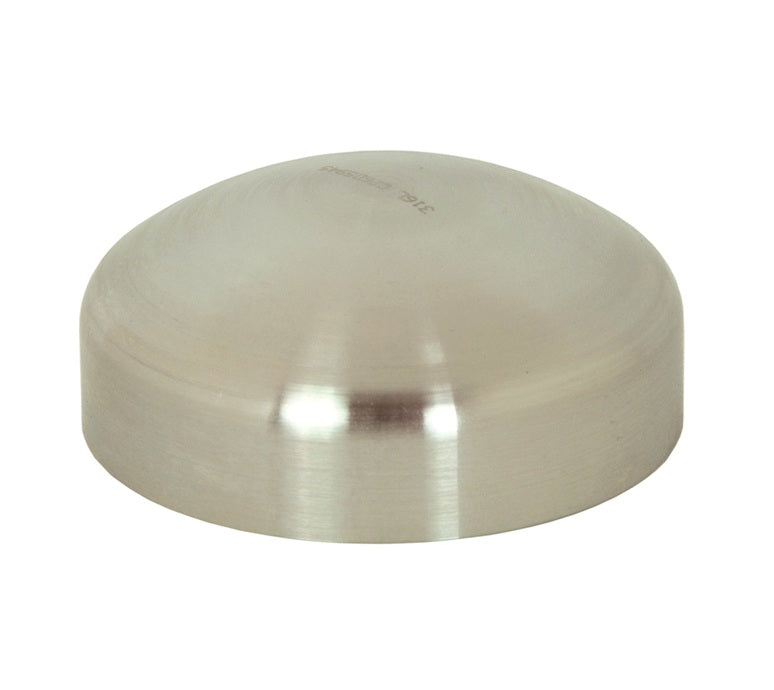

B16W-G100 Dixon Valve 304 Stainless Steel Sanitary Unpolished End Cap - 1" Tube OD
Dixon Sanitary Fittings
Unpolished End Cap for Sanitary Weld Unpolished Elbows
Meets 21CFR 177.2600
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.74 |
| 40–79 | $10.62 |
| 80+ | $9.37 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions
|
||
|---|---|---|---|---|---|
| A | B | C | |||
| - | B16W-R50 | 1/2" | 0.25" | 0.50" | 0.07" |
| - | B16W-R75 | 3/4" | 0.31" | 0.75" | 0.07" |
| B16W-G100 | B16W-R100 | 1" | 0.38" | 1.00" | 0.07" |
| B16W-G150 | B16W-R150 | 1-1/2" | 0.56" | 1.50" | 0.07" |
| B16W-G200 | B16W-R200 | 2" | 0.75" | 2.00" | 0.07" |
| B16W-G250 | B16W-R250 | 2-1/2" | 1.00" | 2.50" | 0.07" |
| B16W-G300 | B16W-R300 | 3" | 1.25" | 3.00" | 0.07" |
| B16W-G400 | B16W-R400 | 4" | 1.50" | 4.00" | 0.08" |
| B16W-G600 | B16W-R600 | 6" | 2.00" | 6.00" | 0.11" |
| B16W-G800 | B16W-R800 | 8" | 2.88" | 8.00" | 0.11" |
