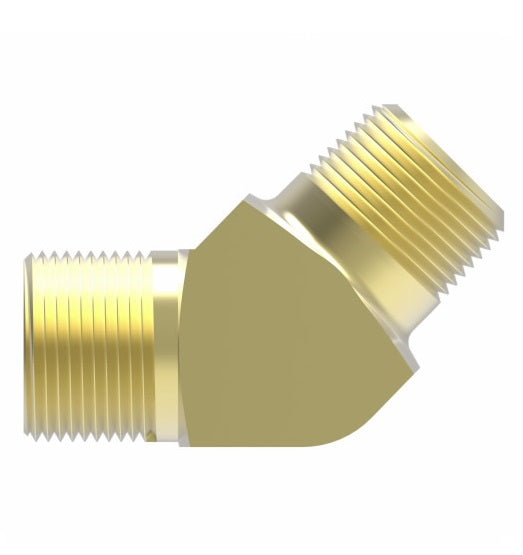

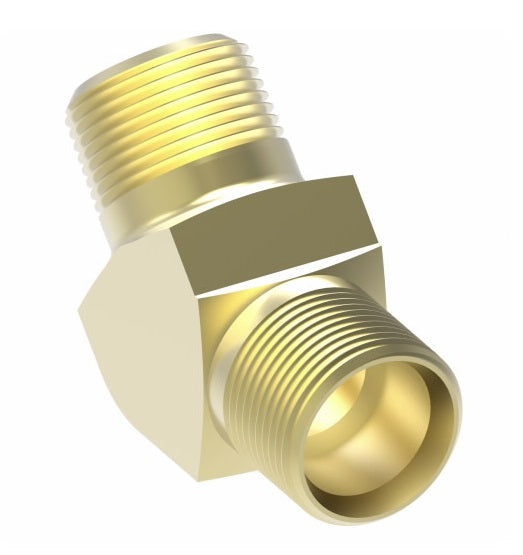

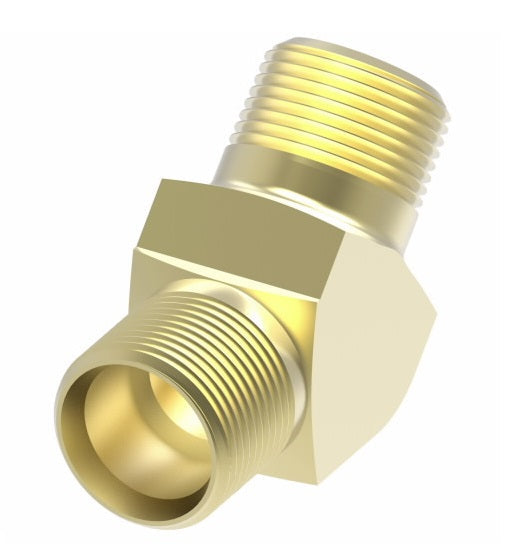

B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass
B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass
B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass

B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass

Sale price$12.44

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector
Buy More, Save More!
Quantity Price Each
10–39 $11.69
40–79 $10.57
80+ $9.33
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Material(s):
  • Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120302BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number		 Brass
Body Only
Part Number		 Tube O.D. Male Pipe Thread D D1 M N
1380X6 B1380X6 3/8" 1/4" 0.312" 0.312" 0.72" 0.86"
1380X6X6 - 3/8" 3/8" 0.312" 0.406" 0.76" 0.95"
1380X8 -
 1/2" 3/8" 0.409" 0.406" 0.85" 0.95"
1380X10 B1380X10 5/8" 1/2" 0.534" 0.531" 0.95" 1.17"
