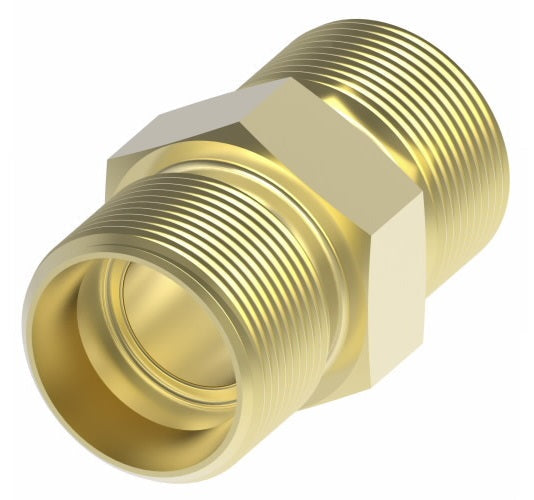

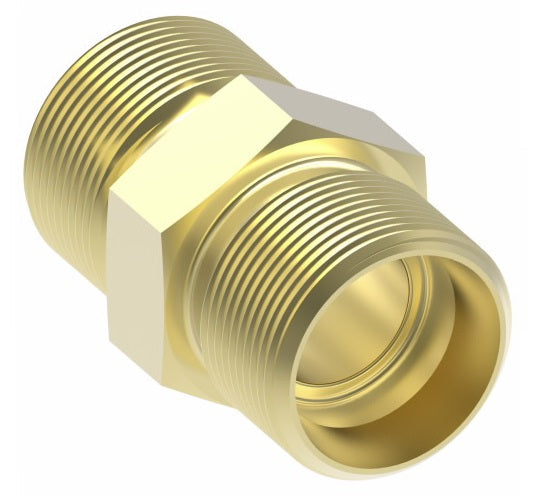

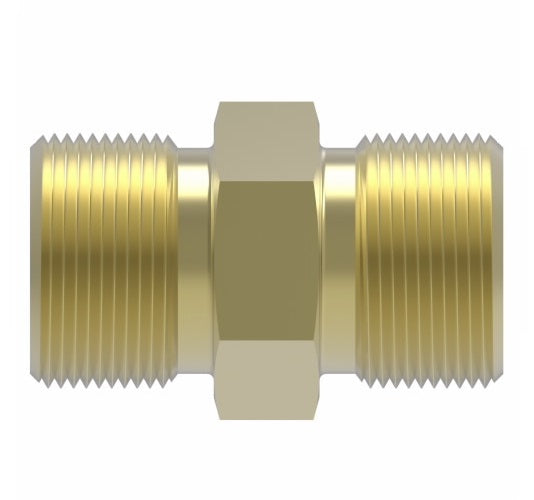

B1362X10 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 5/8" Tube OD x 5/8" Tube OD | Brass

Minimum Order Quantity: 5 Units

Sale price$8.20

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Union


Buy More, Save More!
Quantity Price Each
20–39 $7.71
40–79 $6.97
80+ $6.15
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120101BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number
Brass
Body Only
Part Number
Tube O.D. Hex
C
D L
1362X4 B1362X4 1/4" 7/16" 0.188" 0.85"
1362X6 B1362X6 3/8" 9/16" 0.312" 1.10"
1362X8 B1362X8 1/2" 11/16" 0.406" 1.31"
1362X10 B1362X10 5/8" 13/16" 0.531" 1.43"
1362X12 B1362X12 3/4" 1" 0.656" 1.60"
1362X16 - 1" 1-1/4" 0.875" 1.78"
