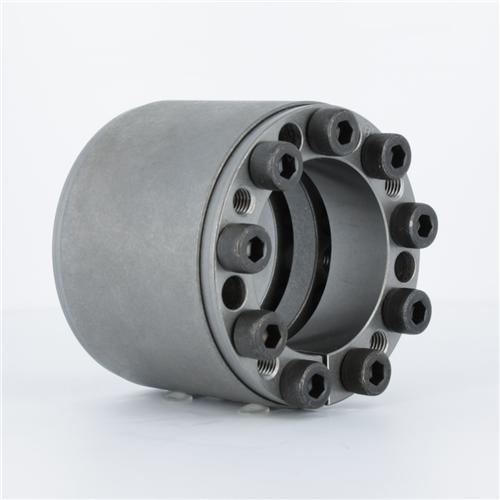

B122203 by Fenner Drives | B-Loc B112 | Heavy Duty | 2-3/16" | Steel
Fenner Drives

B122203 by Fenner Drives | B-Loc B112 | Heavy Duty | 2-3/16" | Steel

Sale price$340.49
Fenner Drives - Power Transmission - Keyless Locking Devices - B-Loc® B112 - Heavy Duty - Steel - Inch

Product Data:

Brand:
  • B-LOC
Series:
  • B112 Series
Overview:
  • The B-LOC B112 Series 1" Keyless Bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 1" in diameter by means of a mechanical interference fit and also transmits up to a maximum of 600 ft lbs torque.
Description:
  • B-LOC B112 Series 1" Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate a high torque, thrust, bending, and/or radial loads. Their wide, double taper design enhances torque transmission and bending moment capacity while maintaining exceptional concentricity with thru-bored hubs. There is no axial movement during installation. The B-LOC B112 Series eliminates the need to hold the shaft or lock machine while applying installation torque, making for fast and easy component repositioning. Since the B-LOC B112 Series Keyless Bushings do not have a flange, the external diameter along the unit's entire length is the same, therefore allowing the unit to be completely inserted into the component bore for flushed or recessed mounting. This series is also self-centering and RoHS compliant.


  • Best Suited For: Applications that require a recessed installation of the bushing with no axial movement of the mounted component relative to the shaft during tightening.


  • Wide, double taper design for enhanced torque transmission and bending moment capacity
  • Exceptional concentricity with thru-bored hubs
  • No axial movement during installation
  • Self-centering
  • Eliminates need to hold shaft or lock machine while applying installation torque
  • Recessed installation without the need for a counter bore
  • RoHS compliant


    • Best Suited For: Applications that require a recessed installation of the bushing with no axial movement of the mounted component relative to the shaft during tightening.

    Features of Fenner Drives Keyless Bushings:
  • Ability to transmit higher torques
  • True zero-backlash
  • Less equipment downtime
  • Ability to mount over existing keyways
  • Complete axial and radial adjustability
  • Simple installation, adjustment and removal


    • All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series: B112 Torque Transmission: 600
Axial Movement: No Bore Tolerance: 2.167
Compliancy RoHS Component Bore Diameter: 2.165"
Hub Pressure: 18656 Installation Torque: 12 ft lb
Internal/ External: Internal Material: Steel
Inch/Inch: Inch Releasing/ Locking: Locking
Screw Size: M6 x 35 Self-Centering: Yes
Shaft Diameter: 1" Shaft Tolerance: 0.998
Taper: Double Thrust: 14390

Part Number d D L L1 Locking Screw Size Ma Mt
Max.
Transmitted		 Th
Max.
Transmitted		 Ph
(inch) (inch) (inch) (inch) Qty Size Install
Torque
(ft lb)		 Torque
(ft lb)		 Thrust
(lbs)		 Hub
Pressure
(PSI)
B122100 1" 2.165" 1.260" 1.575" 6 M6 x 35 12 ft lb 600 ft lb 14390 lbs 18656
T122102 1-1/8" 2.165" 1.260" 1.575" 6 M6 x 35 12 ft lb 675 ft lb 14390 lbs 18656
B122103 1-3/16" 2.165" 1.260" 1.575" 6 M6 x 35 12 ft lb 712 ft lb 14390 lbs 18656
B122104 1-1/4" 2.362" 1.732" 2.126" 7 M6 x 45 12 ft lb 874 ft lb 16788 lbs 14083
B122106 1-3/8" 2.362" 1.732" 2.126" 7 M6 x 45 12 ft lb 962 ft lb 16788 lbs 14083
B122107 1-7/16" 2.362" 1.732" 2.126" 7 M6 x 45 12 ft lb 1006 ft lb 16788 lbs 14083
B122108 1-1/2" 2.953" 1.732" 2.126" 7 M8 x 50 30 ft lb 2011 ft lb 32182 lbs 21598
B122110 1-5/8" 2.953" 1.732" 2.126" 7 M8 x 50 30 ft lb 2179 ft lb 32182 lbs 21598
T122111 1-11/16" 2.953" 1.732" 2.126" 7 M8 x 50 30 ft lb 2263 ft lb 32182 lbs 21598
B122112 1-3/4" 2.953" 1.732" 2.126" 7 M8 x 50 30 ft lb 2347 ft lb 32182 lbs 21598
B122114 1-7/8" 3.150" 2.205" 2.598" 8 M8 x 55 30 ft lb 2873 ft lb 36779 lbs 17881
B122115 1-15/16" 3.150" 2.205" 2.598" 8 M8 x 55 30 ft lb 2969 ft lb 36779 lbs 17881
B122200 2" 3.150" 2.205" 2.598" 8 M8 x 55 30 ft lb 3065 ft lb 36779 lbs 17881
B122202 2-1/8" 3.346" 2.205" 2.598" 9 M8 x 55 30 ft lb 3664 ft lb 41377 lbs 18933
B122203 2-3/16" 3.346" 2.205" 2.598" 9 M8 x 55 30 ft lb 3771 ft lb 41377 lbs 18933
B122204 2-1/4" 3.543" 2.205" 2.598" 10 M8 x 55 30 ft lb 4310 ft lb 45974 lbs 19868
B122206 2-3/8" 3.543" 2.205" 2.598" 10 M8 x 55 30 ft lb 4550 ft lb 45974 lbs 19868
B122207 2-7/16" 3.740" 2.205" 2.598" 10 M8 x 55 30 ft lb 4669 ft lb 45974 lbs 18822
B122208 2-1/2" 3.740" 2.205" 2.598" 10 M8 x 55 30 ft lb 4789 ft lb 45974 lbs 18822
B122209 2-9/16" 3.740" 2.205" 2.598" 10 M8 x 55 30 ft lb 4909 ft lb 45974 lbs 18822
B122210 2-5/8" 4.331" 2.756" 3.150" 10 M10 x 60 60 ft lb 8155 ft lb 74561 lbs 20714
T122211 2-11/16" 4.331" 2.756" 3.150" 10 M10 x 60 60 ft lb 8349 ft lb 74561 lbs 20714
B122212 2-3/4" 4.331" 2.756" 3.150" 10 M10 x 60 60 ft lb 8543 ft lb 74561 lbs 20714
B122214 2-7/8" 4.331" 2.756" 3.150" 10 M10 x 60 60 ft lb 8932 ft lb 74561 lbs 20714
B122215 2-15/16" 4.724" 2.756" 3.150" 11 M10 x 60 60 ft lb 10039 ft lb 82017 lbs 20887
B122300 3" 4.724" 2.756" 3.150" 11 M10 x 60 60 ft lb 10252 ft lb 82017 lbs 20887
T122302 3-1/8" 4.724" 2.756" 3.150" 11 M10 x 60 60 ft lb 10679 ft lb 82017 lbs 20887
B122304 3-1/4" 4.724" 2.756" 3.150" 11 M10 x 60 60 ft lb 11107 ft lb 82017 lbs 20887
B122306 3-3/8" 5.118" 2.756" 3.150" 12 M10 x 60 60 ft lb 12582 ft lb 89474 lbs 21033
B122307 3-7/16" 5.118" 2.756" 3.150" 12 M10 x 60 60 ft lb 12815 ft lb 89474 lbs 21033
B122308 3-1/2" 5.118" 2.756" 3.150" 12 M10 x 60 60 ft lb 13048 ft lb 89474 lbs 21033
T122310 3-5/8" 5.118" 2.756" 3.150" 12 M10 x 60 60 ft lb 13514 ft lb 89474 lbs 21033
B122312 3-3/4" 5.709" 3.543" 4.016" 11 M12 x 80 105 ft lb 19172 ft lb 122699 lbs 20688
B122314 3-7/8" 5.709" 3.543" 4.016" 11 M12 x 80 105 ft lb 19811 ft lb 122699 lbs 20688
T122315 3-15/16" 5.709" 3.543" 4.016" 11 M12 x 80 105 ft lb 20130 ft lb 122699 lbs 20688
B122400 4" 5.709" 3.543" 4.016" 11 M12 x 80 105 ft lb 20450 ft lb 122699 lbs 20688
T122404 4-1/4" 6.102" 3.543" 4.016" 12 M12 x 80 105 ft lb 23703 ft lb 133853 lbs 21112
T122406 4-3/8" 6.102" 3.543" 4.016" 12 M12 x 80 105 ft lb 24400 ft lb 133853 lbs 21112
B122407 4-7/16" 6.496" 3.543" 4.016" 14 M12 x 80 105 ft lb 28874 ft lb 156162 lbs 23138
B122408 4-1/2" 6.496" 3.543" 4.016" 14 M12 x 80 105 ft lb 29280 ft lb 156162 lbs 23138
T122412 4-3/4" 6.496" 3.543" 4.016" 14 M12 x 80 105 ft lb 30907 ft lb 156162 lbs 23138
B122415 4-15/16" 7.087" 4.094" 4.567" 12 M14 x 90 166 ft lb 37477 ft lb 182167 lbs 20618
B122500 5" 7.087" 4.094" 4.567" 12 M14 x 90 166 ft lb 37952 ft lb 182167 lbs 20618
B122504 5-1/4" 7.480" 4.094" 4.567" 14 M14 x 90 166 ft lb 46491 ft lb 212528 lbs 22789
B122507 5-7/16" 7.480" 4.094" 4.567" 14 M14 x 90 166 ft lb 48151 ft lb 212528 lbs 22789
T122508 5-1/2" 7.480" 4.094" 4.567" 14 M14 x 90 166 ft lb 48704 ft lb 212528 lbs 22789
T122512 5-3/4" 7.874" 4.094" 4.567" 15 M14 x 90 166 ft lb 54555 ft lb 227709 lbs 23196
B122515 5-15/16" 7.874" 4.094" 4.567" 15 M14 x 90 166 ft lb 56334 ft lb 227709 lbs 23196
B122600 6" 8.268" 4.094" 4.567" 16 M14 x 90 166 ft lb 60722 ft lb 242890 lbs 23564
T122607 6-7/16" 8.858" 5.276" 5.866" 14 M16 x 110 257 ft lb 77782 ft lb 289982 lbs 20051
T122608 6-1/2" 8.858" 5.276" 5.866" 14 M16 x 110 257 ft lb 78537 ft lb 289982 lbs 20051
B122615 6-15/16" 9.252" 5.276" 5.866" 15 M16 x 110 257 ft lb 89810 ft lb 310695 lbs 20569
B122700 7" 9.252" 5.276" 5.866" 15 M16 x 110 257 ft lb 90619 ft lb 310695 lbs 20569
T122704 7-1/4" 9.843" 5.276" 5.866" 16 M16 x 110 257 ft lb 100113 ft lb 331408 lbs 20624
T122707 7-7/16" 9.843" 5.276" 5.866" 16 M16 x 110 257 ft lb 102702 ft lb 331408 lbs 20624
T122708 7-1/2" 9.843" 5.276" 5.866" 16 M16 x 110 257 ft lb 103565 ft lb 331408 lbs 20624
T122712 7-3/4" 10.236" 5.276" 5.866" 16 M16 x 110 257 ft lb 107017 ft lb 331408 lbs 19830
T122715 7-15/16" 10.236" 5.276" 5.866" 16 M16 x 110 257 ft lb 109606 ft lb 331408 lbs 19830
T122800 8" 10.236" 5.276" 5.866" 16 M16 x 110 257 ft lb 110469 ft lb 331408 lbs 19830

TOLERANCE (TL) Bore diameter machined to D -0/+TL
TL = .002" for bores up to 4.724"
.003" for bores up to 12.008"
.004" for bores up to 25.000"
.005" for bores over 25.000"
d = shaft diameter machined to d +0/-TL
