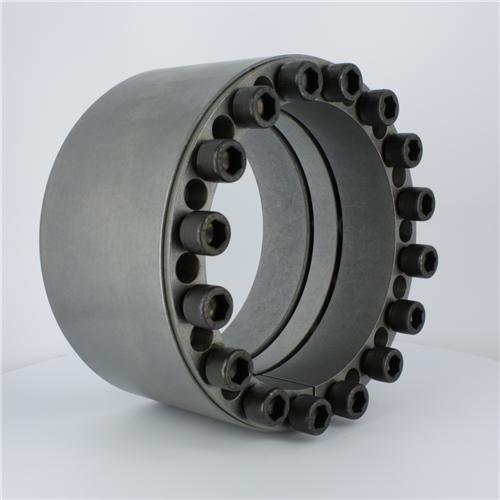

B121160 by Fenner Drives | B-Loc B112 | Heavy Duty | 160mm | Steel
Fenner Drives

B121160 by Fenner Drives | B-Loc B112 | Heavy Duty | 160mm | Steel

Sale price$1,523.18
Fenner Drives - Power Transmission - Keyless Locking Devices - B-Loc® B112 - Steel - Heavy Duty - Metric

Product Data:

Brand:
  • B-LOC
Series:
  • B112 Series
Overview:
  • The B-LOC B112 Series 24mm Keyless Bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 24mm in diameter by means of a mechanical interference fit and also transmits up to a maximum of 755 Nm torque.
Description:
  • B-LOC B112 Series 24mm Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate a high torque, thrust, bending, and/or radial loads. Their wide, double taper design enhances torque transmission and bending moment capacity while maintaining exceptional concentricity with thru-bored hubs. There is no axial movement during installation. The B-LOC B112 Series eliminates the need to hold the shaft or lock machine while applying installation torque, making for fast and easy component repositioning. Since the B-LOC B112 Series Keyless Bushings do not have a flange, the external diameter along the unit's entire length is the same, therefore allowing the unit to be completely inserted into the component bore for flushed or recessed mounting. This series is also self-centering and RoHS compliant.


  • Best Suited For: Applications that require a recessed installation of the bushing with no axial movement of the mounted component relative to the shaft during tightening.


  • Wide, double taper design for enhanced torque transmission and bending moment capacity
  • Exceptional concentricity with thru-bored hubs
  • No axial movement during installation
  • Self-centering
  • Eliminates need to hold shaft or lock machine while applying installation torque
  • Recessed installation without the need for a counter bore
  • RoHS compliant


    • Features of Fenner Drives Keyless Bushings:
  • Ability to transmit higher torques
  • True zero-backlash
  • Less equipment downtime
  • Ability to mount over existing keyways
  • Complete axial and radial adjustability
  • Simple installation, adjustment and removal


    • All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series: B112 Torque Transmission: 755
Axial Movement: No Bore Tolerance: 55.05
Compliancy: RoHS Component Bore Diameter: 55mm
Hub Pressure: 126 Installation Torque: 16 Nm
Internal/ External: Internal Material: Steel
Metric/Inch: Metric Releasing/ Locking: Locking
Screw Size: M6 x 35 Self-Centering: Yes
Shaft Diameter: 24mm Shaft Tolerance: 23.95
Taper: Double Thrust: 62949

Part Number d D L L1 Locking Screw Size Ma Mt
Max.
Transmitted		 Th
Max.
Transmitted		 Ph
(mm) (mm) (mm) (mm) Qty Size Install
Torque
(Nm)		 Torque
(Nm)		 Thrust
(N)		 Hub
Pressure
(N/mm2)
T121024 24mm 55mm 32mm 40mm 6 M6 x 35 16 755 62949 126
T121028 28mm 55mm 32mm 40mm 6 M6 x 35 16 881 62949 126
B121030 30mm 55mm 32mm 40mm 6 M6 x 35 16 944 62949 126
T121032 32mm 60mm 44mm 54mm 7 M6 x 45 16 1175 73440 95
B121035 35mm 60mm 44mm 54mm 7 M6 x 45 16 1285 73440 95
T121038 38mm 75mm 44mm 54mm 7 M8 x 50 41 2742 144304 150
B121040 40mm 75mm 44mm 54mm 7 M8 x 50 41 2886 144304 150
T121042 42mm 75mm 44mm 54mm 7 M8 x 50 41 3030 144304 150
B121045 45mm 75mm 44mm 54mm 7 M8 x 50 41 3247 144304 150
T121048 48mm 80mm 56mm 66mm 8 M8 x 55 41 3958 164918 124
B121050 50mm 80mm 56mm 66mm 8 M8 x 55 41 4123 164918 124
B121055 55mm 85mm 56mm 66mm 9 M8 x 55 41 5102 185533 132
B121060 60mm 90mm 56mm 66mm 10 M8 x 55 41 6184 206148 138
B121065 65mm 95mm 56mm 66mm 10 M8 x 55 41 6700 206148 131
B121070 70mm 110mm 70mm 80mm 10 M10 x 60 81 11559 330251 142
T121075 75mm 115mm 70mm 80mm 10 M10 x 60 81 12384 330251 136
B121080 80mm 120mm 70mm 80mm 11 M10 x 60 81 14531 363276 143
T121085 85mm 125mm 70mm 80mm 11 M10 x 60 81 15439 363276 138
B121090 90mm 130mm 70mm 80mm 12 M10 x 60 81 17834 396302 144
T121095 95mm 135mm 70mm 80mm 12 M10 x 60 81 18824 396302 139
B121100 100mm 145mm 90mm 102mm 11 M12 x 80 142 27222 544433 142
B121110 110mm 155mm 90mm 102mm 12 M12 x 80 142 32666 593927 145
B121120 120mm 165mm 90mm 102mm 14 M12 x 80 142 41575 692914 159
B121130 130mm 180mm 104mm 116mm 12 M14 x 90 225 52658 810116 142
B121140 140mm 190mm 104mm 116mm 14 M14 x 90 225 66159 945135 157
B121150 150mm 200mm 104mm 116mm 15 M14 x 90 225 75948 1012645 160
B121160 160mm 210mm 104mm 116mm 16 M14 x 90 225 86412 1080154 162
T121170 170mm 225mm 134mm 149mm 14 M16 x 110 348 109506 1288307 138
T121180 180mm 235mm 134mm 149mm 15 M16 x 110 348 124230 1380329 142
T121190 190mm 250mm 134mm 149mm 16 M16 x 110 348 139873 1472351 142
B121200 200mm 260mm 134mm 149mm 16 M16 x 110 348 147235 1472351 137

TOLERANCE (TL) Bore diameter machined to D -0/+TL
TL = .05mm for bores up to 120mm
.08mm for bores up to 305mm
.10mm for bores up to 635mm
.13mm for bores over 635mm
d = shaft diameter machined to d +0/-TL.
