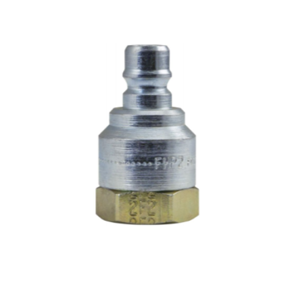

B-VHN8-8F Breco by Foster | FH Series | Two Way Valved Plugs | Quick Disconnect | 1/2" Female NPT Thread | Steel

B-VHN8-8F Breco by Foster | FH Series | Two Way Valved Plugs | Quick Disconnect | 1/2" Female NPT Thread | Steel

Sale price$27.14

Foster Quick Disconnects - FH Series, Two Way Valved Sockets - Breco

Product Data:

Brand:
  • Breco
Series:
  • H Series
Shape:

Straight
Applications:
  • FH & FIH Series Quick Disconnect has provided years of reliable service on hydraulic/pneumatic applications in the handling of gases and fluids. The FH & FIH Series couplings are engineered to meet or exceeds MIL-C-51234. Options are available for static pressure hydraulic systems and also for pneumatic air tool use.
  • The FIH Series sockets & plugs are for pneumatic applications. The FIH sockets have a valve with 360 deg. contact with plug.
Interchange:
  • FH Series interchanges with Snap-Tite "H" Series.
  • FIH Series interchanges with Snap-Tite "IH" Series.
  • Within each series, only sockets and plugs of the same size will couple together.
Features:
  • Type:
    • FH - Two Way Shut-Off and Straight-Thru
    • FIH - One Way Shut-Off
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Rated Pressure: Rated Pressure as defined by ANSI/B93.2-1986, non-shock service.
  • Plug Features:
    • Machined from solid bar stock
    • Steel plugs are hardened and zinc plated to provide heavy duty performance
    • Flow - Large diameters provide for higher flow than other double shut-off quick disconnects
  • Seals
    • Buna-N (Nitrile) seals are standard
    • Valve seals are crimped in place to maintain integrity during excessive flow conditions
Body Size FH Series, Two Way FH, Straight Thru FIH Series, One Way
Steel PSIG Brass PSIG Steel PSIG Brass PSIG Steel PSIG
1/4" 3250 2000 3000 3000 3000
3/8" 2250 1200 4000 3500 2250
1/2" 1800 1200 4000 2500 2000
Male PlugPart Number Female CouplerPart Number Snap-Tite No. (Breco) FPT Thread Description
FHP2F2 FHS2F2 FHS2F2B B-VHN4-4F 1/4" Steel
FHP2F2-101 - - 1/4" Steel w/Viton Seal
FHP2F2B FHS2F2 FHS2F2B B-VHN4-4F-B 1/4" Brass
FHP2F2B-101 - - 1/4" Brass, w/Viton Seal
FHP3F3 FHS3F3 FHS3F3B B-VHN6-6F 3/8" Steel
FHP3F3B FHS3F3 FHS3F3B - 3/8" Brass
FHP4F4 FHS4F4 FHS4F4B B-VHN8-8F 1/2" Steel
FHP4F4B FHS4F4 FHS4F4B - 1/2" Brass
- - B-VHN12-12F 3/4" Steel
- - B-VHN16-16F 1" Steel
- - B-VHN20-20F 1-1/4" Steel
