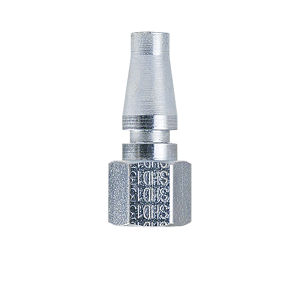

B-TL2F2-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/4" Plug x 1/4" Female NPT Thread | Steel

B-TL2F2-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/4" Plug x 1/4" Female NPT Thread | Steel

Minimum Order Quantity: 5 Units

Sale price$4.16

Foster Quick Disconnects - SHD & TL Series 1/4" Plugs - Breco

Product Data:

Brand:
  • Breco
Series:
  • TL Series
Shape:

Straight
Interchange:
  • Interchanges with Schrader Standard & Heavy Duty
Features:
  • Engineered for speedy coupling and uncoupling. To lock - push in; To unlock - rotate sleeve 1/8 turn.
  • Designed to protect against accidental uncoupling. A variety of types and sizes are available to meet specific needs.
  • Standard Twist-Lock couplings are ideal for low to medium air flows, such as air tools.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (Nitrile seal): -10 deg. to +165 deg. F
  • Locking Device: Twist-Lock
  • Vacuum Service: 27 HG
Materials:
  • Aluminum bodies and zinc plated steel sleeves. Buna-N seals. Brass adapters.
Operation:
  • Automatic Push to Connect; Twist-to-release
Female CouplerPart Number Brand Male PlugPart Number Size Description
SHD2803 Foster SHD13 1/8" Aluminum/Steel/Brass
B-2TLF1-S Breco B-TL2F1-S 1/8" Aluminum/Steel/Brass
SHD2803S/S Foster - 1/8" 303 Stainless Steel
SHD3003 Foster SHD11 1/4" Aluminum/Steel/Brass
B-2TLF2-S Breco B-TL2F2-S 1/4" Aluminum/Steel/Brass
SHD3003-104 Foster - 1/4" Aluminum/Steel/Brass w/Silicone Seal
SHD3003LV Foster - 1/4" Aluminum/Steel/Brass Less Valve
SHD3003S/S Foster SHD11S/S 1/4" 303 Stainless Steel
SHD3203 Foster - 3/8" Aluminum/Steel/Brass
B-2TLF3-S Breco - 3/8" Aluminum/Steel/Brass
SHD3203S/S Foster - 3/8" 303 Stainless Steel
