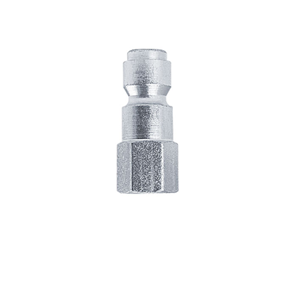

B-J3F3-S Breco by Foster | J Series | Quick Disconnect | 3/8" Tru-Flate Interchange Plug x 3/8" Female NPT Thread | Steel

B-J3F3-S Breco by Foster | J Series | Quick Disconnect | 3/8" Tru-Flate Interchange Plug x 3/8" Female NPT Thread | Steel

Sale price$11.61
Buy more, save moreDiscounts applied in cart/checkout.
1/4" - TF & J Series (Interchange with Tru-Flate Series)
TF Series Couplers connect with Tru-Flate design (automotive interchange) and support up to 300 psig. These are manual sleeve, single shut-off quick couplings. The internal steel tubular valve provides high air flow with minimal pressure drop. Available in a wide range of sizes and materials for various air or fluid applications.
Type: One Way Shut-Off
Rated Pressure: 300 PSIG
Operation:
Automatic – Push to Connect, retract socket sleeve to disconnect
Sizes: ¼", ?" (For ½", use Industrial Interchange product)
Features:
  • Developed for the automotive industry
  • High flow valves with minimal pressure drop
  • Integral Sleeve guard helps prevent accidental disconnect
  • Grip-ring sleeve version allows easy operation while wearing gloves
 Applications:
  • Air compressors, Pneumatic Tools
  • Grease guns, Paint applicators
Part Number Socket FPT Description
B-2JF2-B 1/4" 1/4" Brass
B-2JF3-B 1/4" 3/8" Brass
B-3JF2-S 3/8" 1/4" Steel
B-3JF3-S 3/8" 3/8" Steel
Part Number Plug FPT Description
B-J2F1-S 1/4" 1/8" Steel
B-J2F2-B 1/4" 1/4" Brass
B-J2F2-S 1/4" 1/4" Steel
B-J2F3-S 1/4" 3/8" Steel
B-J3F2-S 3/8" 1/4" Steel
B-J3F3-S 3/8" 3/8" Steel

Additional Product Data:

Brand:
  • Breco
Series:
  • J Series
Shape:

Straight

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
