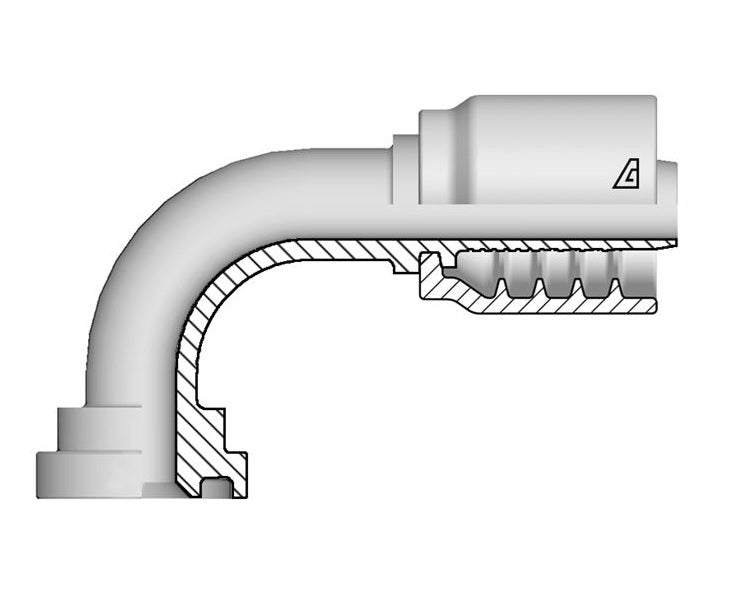

B-1620-C619 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -16 Hose ID x -20 Code 61 Flange | Steel

B-1620-C619 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -16 Hose ID x -20 Code 61 Flange | Steel

Sale price$79.49

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | Hose Barb x Code 61 Flange
Buy More, Save More!
Quantity Price Each
5–19 $74.72
20–59 $67.57
60+ $59.62
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

90 Degree
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 3000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 D
Drop		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) (mm) lbs/each
B-0808-C619 08 1/2" 12.7mm 08 1/2" 30.2mm 45.8mm 42.0mm 0.39 lbs
B-0812-C619 08 1/2" 12.7mm 12 3/4" 38.1mm 45.3mm 51.0mm 0.52 lbs
B-1212-C619 12 3/4" 19.0mm 12 3/4" 38.1mm 59.7mm 58.0mm 0.81 lbs
B-1216-C619 12 3/4" 19.0mm 16 1 44.5mm 66.2mm 64.5mm 0.97 lbs
B-1616-C619 16 1" 25.4mm 16 1 44.5mm 70.6mm 67.0mm 1.18 lbs
B-1620-C619 16 1" 25.4mm 20 1-1/4 50.8mm 73.6mm 71.0mm 1.30 lbs
B-1624-C619 16 1" 25.4mm 24 1-1/2 60.3mm 93.1mm 75.0mm 2.07 lbs
