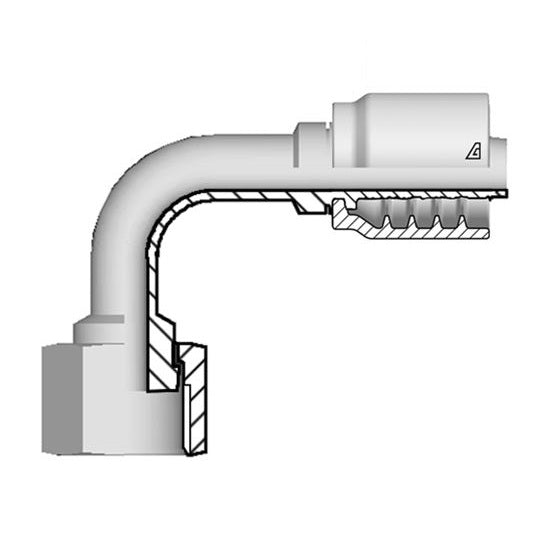

B-1216-FO9M Alfagomma by Kuriyama | B Series | AlfaCrimp One-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -12 Hose ID x -16 Female O-Ring Face Seal | Steel

B-1216-FO9M Alfagomma by Kuriyama | B Series | AlfaCrimp One-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -12 Hose ID x -16 Female O-Ring Face Seal | Steel

Sale price$56.33

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | Hose Barb x Female O-Ring Face Seal
Buy More, Save More!
Quantity Price Each
10–39 $52.95
40–79 $47.88
80+ $42.25
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

90 Degree
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FO9M 04 1/4" 6.4mm 04 9/16-18 29.8mm 32mm 17mm 0.17 lbs
B-0406-FO9M 04 1/4" 6.4mm 06 11/16-16 37.3mm 38mm 22mm 0.22 lbs
B-0506-FO9M 05 5/16" 7.9mm 06 11/16-16 40.7mm 34mm 22mm 0.26 lbs
B-0606-FO9M 06 3/8" 9.5mm 06 11/16-16 41.8mm 38mm 22mm 0.25 lbs
B-0608-FO9M 06 3/8" 9.5mm 08 13/16-16 43.8mm 41mm 24mm 0.30 lbs
B-0808-FO9M 08 1/2" 12.7mm 08 13/16-16 34.8mm 42mm 24mm 0.32 lbs
B-0810-FO9M 08 1/2" 12.7mm 10 1-14 48.3mm 47mm 30mm 0.48 lbs
B-1010-FO9M 10 5/8" 15.9mm 10 1-14 55.4mm 44mm 30mm 0.55 lbs
B-1012-FO9M 10 5/8" 15.9mm 12 1-3/16-12 55.4mm 58mm 36mm 0.73 lbs
B-1212-FO9M 12 3/4" 19.0mm 12 1-3/16-12 61.6mm 58mm 36mm 0.87 lbs
B-1216-FO9M 12 3/4" 19.0mm 16 1-7/16-12 65.5mm 71mm 41mm 1.05 lbs
B-1616-FO9M 16 1" 25.4mm 16 1-7/16-12 82.6mm 66mm 41mm 1.31 lbs
B-1620-FO9M 16 1" 25.4mm 20 1-11/16-12 82.6mm 78mm 50mm 1.69 lbs
