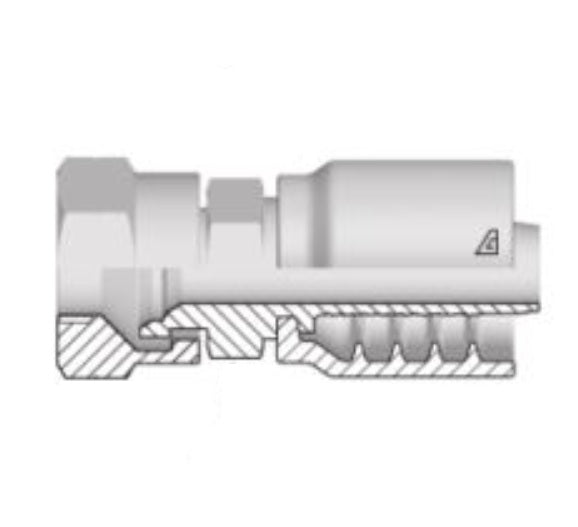

B-1212-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -12 Hose ID x -12 Female JIS Swivel 30° Seat | Steel

B-1212-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -12 Hose ID x -12 Female JIS Swivel 30° Seat | Steel

Sale price$35.04

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | Hose Barb x Female JIS Swivel 30° Seat
Buy More, Save More!
Quantity Price Each
10–39 $32.94
40–79 $29.78
80+ $26.28
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

Straight
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in)-TPI		 (mm) (mm) (mm) lbs/each
B-0404-FJIS 04 1/4" 6.4mm 04 1/4-19 20.8mm 17mm 19mm 0.16 lbs
B-0606-FJIS 06 3/8" 9.5mm 06 3/8-19 21.8mm 19mm 22mm 0.21 lbs
B-0808-FJIS 08 1/2" 12.7mm 08 1/2-14 23.6mm 22mm 27mm 0.31 lbs
B-1212-FJIS 12 3/4" 19.0mm 12 3/4-14 27.1mm 30mm 36mm 0.58 lbs
B-1616-FJIS 16 1" 25.4mm 16 1-11 32.9mm 36mm 41mm 0.87 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
