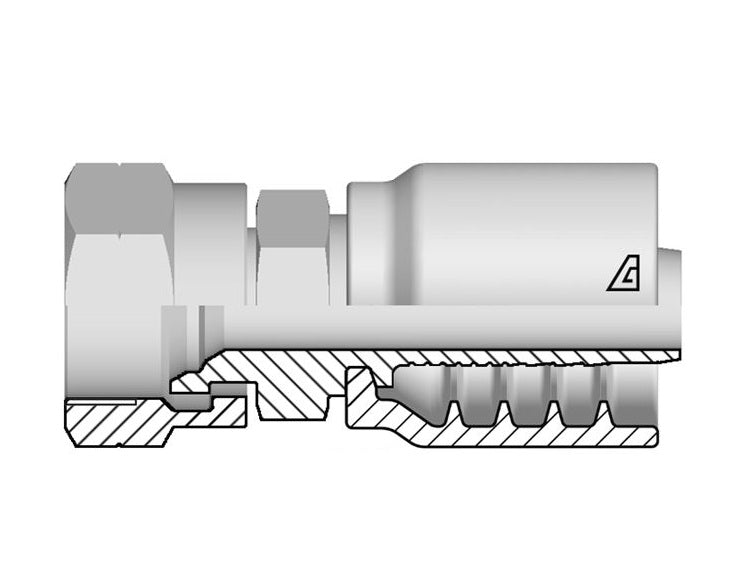

B-0822-FKOS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x M22x1.5 Female Komatsu | Steel

B-0822-FKOS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x M22x1.5 Female Komatsu | Steel

Sale price$20.05

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female Komatsu
Buy More, Save More!
Quantity Price Each
10–39 $18.85
40–79 $17.04
80+ $15.04
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

Straight
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in)-TPI		 (mm) (mm) (mm) lbs/each
B-0414-FKOS 04 1/4" 6.4mm 14 14x1.5 20.8mm 17mm 19mm 0.17 lbs
B-0618-FKOS 06 3/8" 9.5mm 18 18x1.5 21.8mm 19mm 22mm 0.21 lbs
B-0822-FKOS 08 1/2" 12.7mm 22 22x1.5 23.6mm 22mm 27mm 0.31 lbs
B-1024-FKOS 10 5/8" 15.9mm 24 24x1.5 27.1mm 30mm 32mm 0.51 lbs
B-1230-FKOS 12 3/4" 19.0mm 30 30x1.5 27.6mm 30mm 36mm 0.61 lbs
B-1633-FKOS 16 1" 25.4mm 33 33x1.5 35.7mm 36mm 41mm 1.01 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
