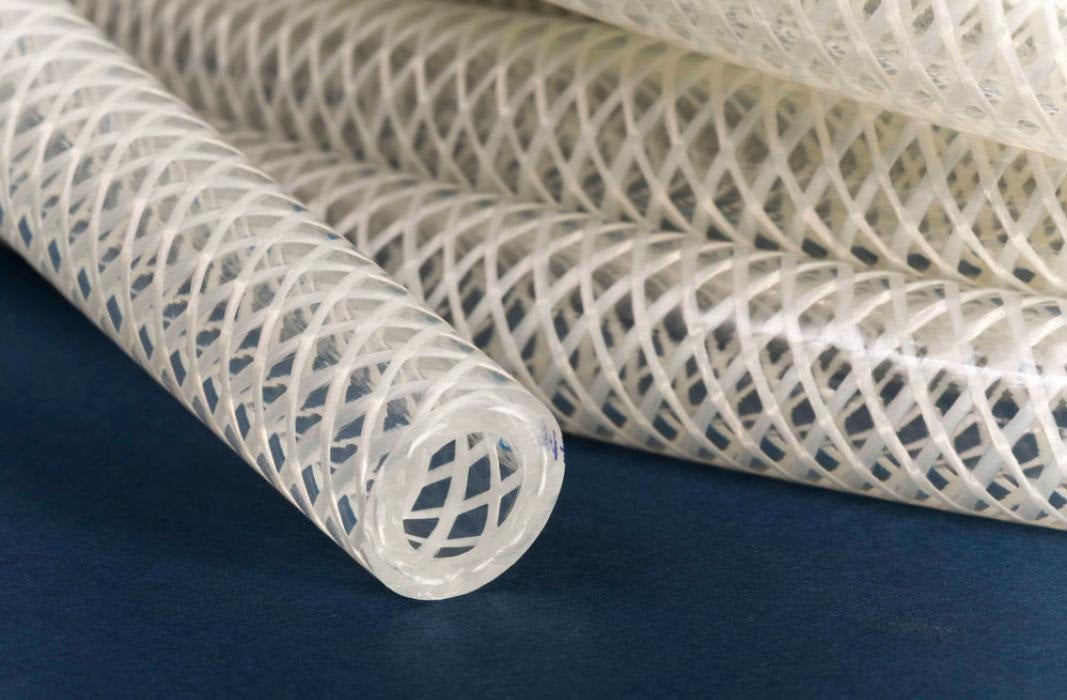

AZY00071 Versilon™ by Saint Gobain | C-544-A IB | Reinforced Multi-Purpose Abrasion Resistant Polyurethane Pressure Tubing | 1-1/4" ID x 1-3/4" OD x 1/4" Wall | 50' Package Length
Saint Gobain
Versilon™ C-544-A IB | Reinforced Multi-Purpose Abrasion Resistant Polyurethane Pressure Tubing
Versilon® C-544-A IB flexible, reinforced tubing from Saint-Gobain is flexible and designed for demanding applications requiring a tight bend radius where other tubes have collapsed and failed.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $935.53 |
| 15–29 | $845.95 |
| 30+ | $796.19 |
Versilon™ C-544-A IB | Reinforced Multi-Purpose Abrasion Resistant Polyurethane Pressure Tubing
Specially formulated from tough ether-based polyurethane resins, Versilon® C-544-A IB tubing is ideal for use in some of the most physically demanding applications. When exposed to abrasive conditions, the excellent wear properties of Versilon® C-544-A IB tubing frequently outperforms traditional rubber, plastic, and metal materials.
1
What is this product used for?
- Food and cosmetic processing
- Abrasive and viscous slurry transfer
- Lubrication and degreaser dispensing
- Pellet and powder transfer
- Pneumatic sensory devices
- Instrumentation control lines
- Coolant recovery systems
2
What are the key specifications?
Polyurethane
Polyurethane
Braided
Clear
180°F (82°C)
-100°F (-73°C)
Meets FDA 21 CFR, 177.1680 and 177.2600 criteria for food contact applications.
Not intended as an implant material!
3
What are the main product features?
- Exceptional abrasion and tear resistance.
- Tough braid reinforcement for elevated working pressures.
- Excellent resistance to oils, greases, and fuels.
- Retains flexibility in sub-zero environments.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Max. Suggested Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AZY02008 | 1/8" | 3/8" | 1/8" | 1/4" | 420 PSI | 220 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AZY02019 | 1/4" | 1/2" | 1/8" | 3/4" | 275 PSI | 150 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AZY02029 | 3/8" | 5/8" | 1/8" | 1-1/2" | 205 PSI | 115 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AZY02038 | 1/2" | 3/4" | 1/8" | 2" | 195 PSI | 110 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AZY02046 | 5/8" | 7/8" | 1/8" | 3" | 175 PSI | 105 PSI | 29.9 in. Hg | 25.0 in. Hg | 100ft |
| AZY02054 | 3/4" | 1-1/16" | 5/32" | 3-1/2" | 150 PSI | 100 PSI | 29.9 in. Hg | 25.0 in. Hg | 100ft |
| AZY02064 | 1" | 1-3/8" | 3/16" | 4-3/4" | 120 PSI | 80 PSI | 29.9 in. Hg | 15.0 in. Hg | 100ft |
| AZY00071 | 1-1/4" | 1-3/4" | 1/4" | 6" | 95 PSI | 65 PSI | 29.9 in. Hg | 20.0 in. Hg | 50ft |
| AZY00074 | 1-1/2" | 2" | 1/4" | 7-1/2" | 80 PSI | 50 PSI | 29.9 in. Hg | 15.0 in. Hg | 50ft |
| AZY00078 | 2" | 2-1/2" | 1/4" | 13" | 70 PSI | 40 PSI | 15.0 in. Hg | 10.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® C-544-A IB Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
