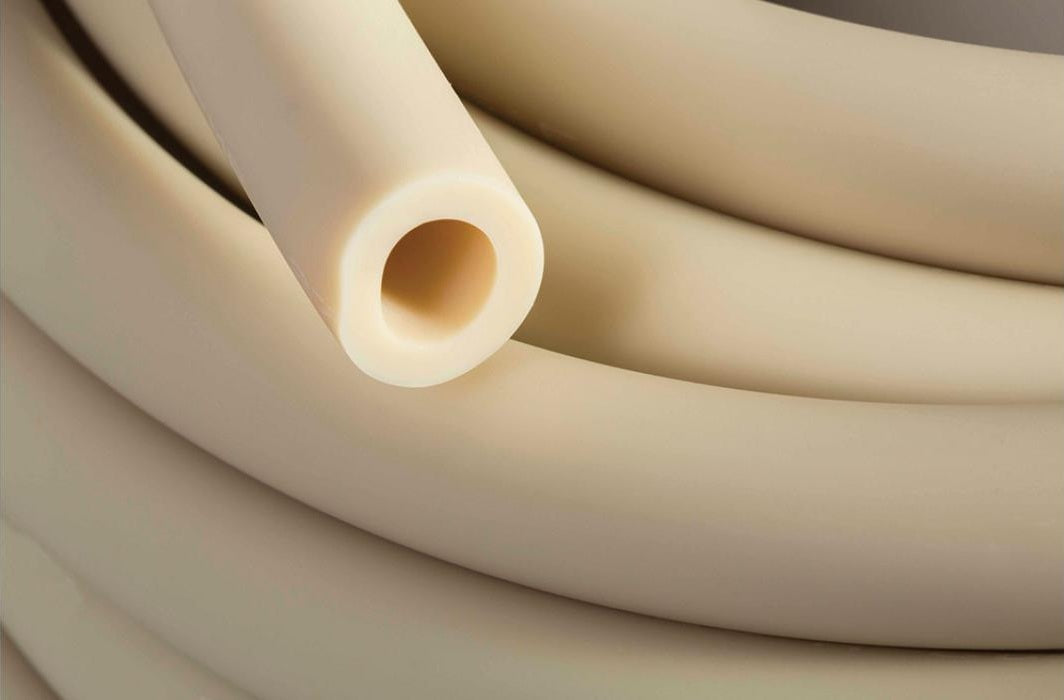

AZT00027 Tygon® by Saint Gobain | A-60-C | Cleaning Chemical Dispensing Tubing | 3/8" ID x 1/2" OD x 1/16" Wall | | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Tygon® A-60-C | Cleaning Chemical Dispensing Tubing
Formulated to withstand extreme temperatures from -75°F to 275°F (-59°C to 135°C), Tygon® A-60-C tubing will not crack or deteriorate when used in demanding cleaning chemical dispensing applications. Extremely flexible, it resists kinks and retains its shape while installing quickly and easily. Its excellent flexural fatigue resistance makes it the absolute best choice for use in peristaltic pumps often found in dispensing equipment. Repeatedly autoclavable, it can be steam cleaned in place, eliminating the need for frequent tubing replacement. When harsh sanitizing solutions are used, it exhibits exceptional chemical resistance and is entirely unaffected by a wide variety of cleaning solutions.
1
What is this product used for?
- Tygon® A-60-C tubing is ideal for use in clean-in-place and steam-in-place cleaning and sterilization systems. It is compatible with virtually all commercial cleaners and sanitizers and can be repeatedly autoclaved for up to five cycle times without affecting its overall service life.
2
What are the key specifications?
Thermoplastic Elastomer
Thermoplastic Elastomer
None
Cream
275°F (135°C)
-75°F (-60°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature resistant from -75°F to 275°F (-59°C to 135°C).
- Compatible with virtually all common sanitizers and cleaners.
- Ozone and UV light resistant.
- Repeatedly autoclavable.
- Chemically compatible with a wide range of cleaners.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure* |
Vaccum Pressure Rating |
Length | ||
|---|---|---|---|---|---|---|---|---|---|
| at 73°F (PSI) | at 180°F (PSI) | at 73°F (PSI) | at 180°F (PSI) | ||||||
| AZT00003 | 1/16" | 3/16" | 1/16" | 1/4" | 34 PSI | 21 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 12 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 8 PSI | 29.9 inHg | 23.0 inHg | 50ft |
| AZT00017 | 1/4" | 3/8" | 1/16" | 1-1/4" | 10 PSI | 6 PSI | 26.0 inHg | 13.0 inHg | 50ft |
| AZT00019 | 1/4" | 1/2" | 1/8" | 3/4" | 19 PSI | 12 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 8 PSI | 5 PSI | 17.0 inHg | 8.0 inHg | 50ft |
| AZT00027 | 3/8" | 1/2" | 1/16" | 2-1/4" | 7 PSI | 4 PSI | 11.0 inHg | 5.0 inHg | 50ft |
| AZT00029 | 3/8" | 5/8" | 1/8" | 1-1/4" | 13 PSI | 8 PSI | 29.9 inHg | 23.0 inHg | 50ft |
| AZT00038 | 1/2" | 3/4" | 1/8" | 2" | 10 PSI | 6 PSI | 26.0 inHg | 13.0 inHg | 50ft |
| AZT00046 | 5/8" | 7/8" | 1/8" | 3-1/4" | 8 PSI | 5 PSI | 17.0 inHg | 8.0 inHg | 50ft |
| AZT00053 | 3/4" | 1" | 1/8" | 4" | 7 PSI | 4 PSI | 11.0 inHg | 5.0 inHg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A-60-C Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
