AY242012 PharMed® by Saint Gobain | BPT Series | Biocompatible Peristaltic Pump Tubing | 3/16" ID x 5/16" OD x 1/16" Wall | 25' Package Length
Saint Gobain
PharMed® BPT | Biocompatible Peristaltic Pump Tubing

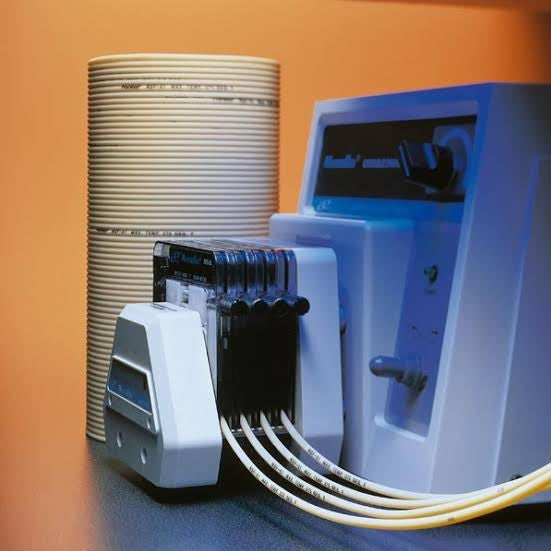

PharMed® BPT Tubing has been formulated to withstand the rigors of peristaltic pumping action, while providing the biocompatible fluid surface required in sensitive bioprocess applications.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $98.80 |
| 20–59 | $89.34 |
| 60+ | $84.09 |

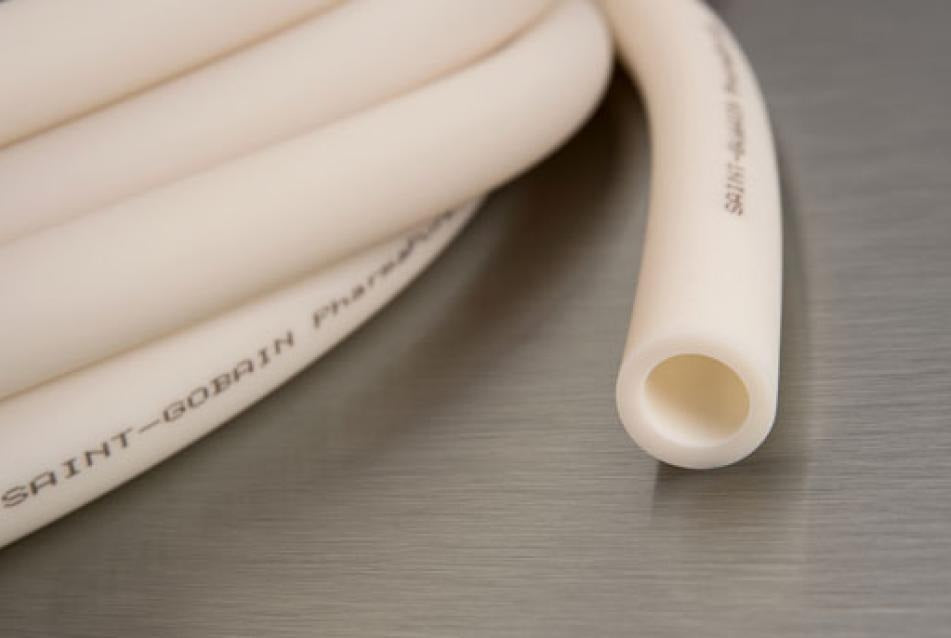

PharMed® BPT Tubing
PharMed® BPT tubing is ideal for use in clean-in-place systems. It is compatible with virtually all commercial cleaners and sanitizers and can be repeatedly autoclaved up to five cycles without affecting overall service life. PharMed BPT also withstands 50kGy of gamma radiation with minimal effect on physical properties.
1
What is this product used for?
- Cell Harvest and Media Process Systems
- Cell Chromatography Fluid Transfer
- Bioreactor Process Lines
- Production Filtration and Fermentation
- Diagnostics and Laboratory Testing
- Shear-Sensitive Fluid Transfer
2
What are the key specifications?
N/A
N/A
None
Opaque Cream
275°F (135°C)
-75°F (-59°C)
Meets the requirements of USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
Not intended as an implant material!
3
What are the main product features?
- Outlasts silicone tubing in peristaltic pumps.
- Withstands repeated autoclaving.
- Multiple manufacturing sites.
- Less permeable to gases and vapors than silicone tubing.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Max. Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AY242606 | .020" | .145" | 1/16" | 1/8" | 115 PSI | 72 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242605 | 1/32" | 5/32" | 1/16" | 1/8" | 78 PSI | 49 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242002 | 1/16" | 1/8" | 1/32" | 1/4" | 25 PSI | 14 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242003 | 1/16" | 3/16" | 1/16" | 1/8" | 43 PSI | 27 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242005 | 3/32" | 7/32" | 1/16" | 1/4" | 30 PSI | 19 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242006 | 1/8" | 3/16" | 1/32" | 1/2" | 13 PSI | 8 PSI | 25.0 in. Hg | 15.0 in. Hg | 25ft |
| AY242007 | 1/8" | 1/4" | 1/16" | 1/2" | 24 PSI | 15 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242012 | 3/16" | 5/16" | 1/16" | 5/8" | 17 PSI | 10 PSI | 29.9 in. Hg | 27.0 in. Hg | 25ft |
| AY242017 | 1/4" | 3/8" | 1/16" | 7/8" | 13 PSI | 8 PSI | 25.0 in. Hg | 15.0 in. Hg | 25ft |
| AY242019 | 1/4" | 1/2" | 1/8" | 3/4" | 24 PSI | 15 PSI | 29.9 in. Hg | 29.9 in. Hg | 25ft |
| AY242022 | 5/16" | 7/16" | 1/16" | 1-1/4" | 11 PSI | 6 PSI | 15.0 in. Hg | 9.0 in. Hg | 25ft |
| AY242027 | 3/8" | 1/2" | 1/16" | 1-3/8" | 9 PSI | 5 PSI | 10.0 in. Hg | 6.0 in. Hg | 25ft |
| AY242029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 17 PSI | 10 PSI | 29.9 in. Hg | 27.0 in. Hg | 25ft |
| AY242038 | 1/2" | 3/4" | 1/8" | 1-1/8" | 10 PSI | 8 PSI | 25.0 in. Hg | 15.0 in. Hg | 25ft |
| AY242046 | 5/8" | 7/8" | 1/8" | 2-3/4" | 11 PSI | 6 PSI | 15.0 in. Hg | 9.0 in. Hg | 25ft |
| AY242053 | 3/4" | 1" | 1/8" | 3-1/2" | 9 PSI | 5 PSI | 10.0 in. Hg | 6.0 in. Hg | 25ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain PharMed® BPT Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
