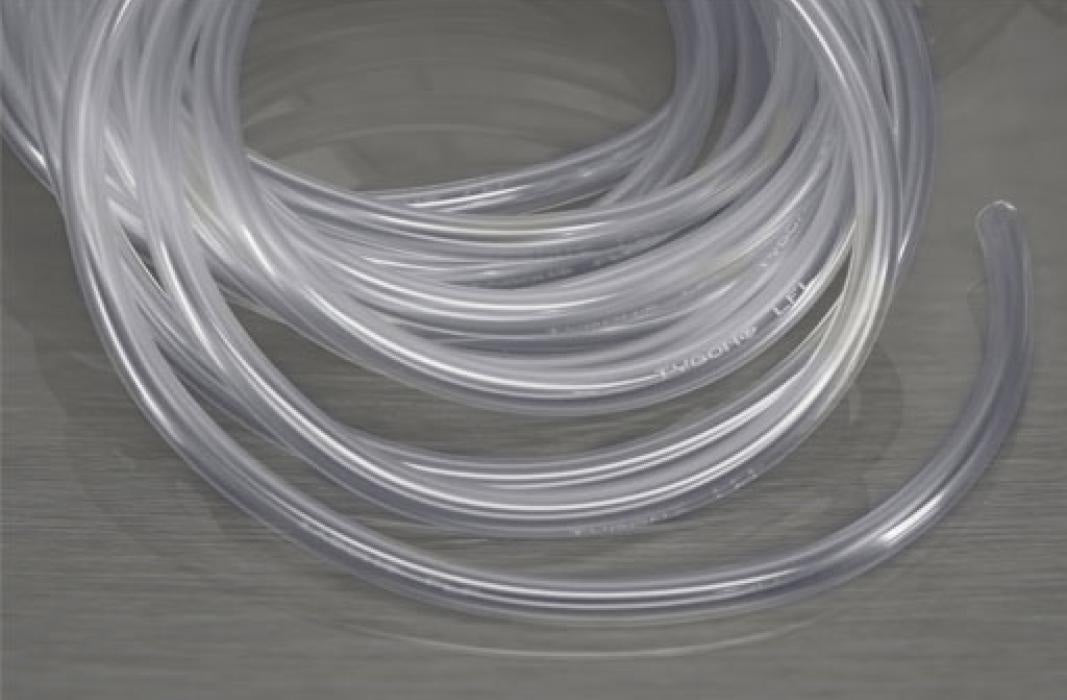

AVX42017 Tygon S3™ by Saint Gobain | E-LFL | Clear Peristaltic Pump & Laboratory Tubing | 1/4" ID x 3/8" OD x 1/16" Wall | 25' Package Length
Saint Gobain
Tygon S3™ E-LFL | Clear Peristaltic Pump & Laboratory Tubing
Tygon S3™ E-LFL clear peristaltic pump tubing is formulated specifically for use in peristaltic pumping applications.
It has superior pump life compared to other clear tubes not only at 0 psi but also at back pressures up to 25 psi.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $127.95 |
| 20–59 | $115.70 |
| 60+ | $108.90 |
Tygon S3™ E-LFL | Clear Peristaltic Pump & Laboratory Tubing
Non-DEHP Tygon S3™ E-LFL is made with bio-based plasticizers which increase pump performance while simultaneously reducing environmental impact. In addition, Tygon S3™ E-LFL has higher resistance to gas permeation compared to silicone, protecting your sensitive fluids from oxidation or adulteration.
1
What is this product used for?
- Production filtration and fermentation
- Food and cosmetic processing
- Surfactant delivery
- Flavor and vitamin concentrate dispensing
- Printing ink transfer
- Highly viscous fluid transfer
- Drum and tank drainage
- Shear-sensitive fluid transfer
- Wide range of liquid transfer in labs and bioprocess applications
2
What are the key specifications?
N/A
N/A
None
Clear
165°F (74°C)
-67°F (-55°C)
Meets USP Class VI, NSF-51, and FDA criteria
Not intended as an implant material!
3
What are the main product features?
- Non-DEHP, bio-based plasticizer.
- Bio-based formulation reduces environmental impact.
- Excellent for laboratory applications.
- Longest flex life of any clear Tygon® tubing, reduces downtime due to pump failure.
- Can be autoclaved — suitable for high purity applications.
- Extremely low particle spallation — reliable for sensitive-fluid applications.
- Meets the requirements of USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5.
- Suitable for laboratory analysis, diagnostics and food contact applications.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AVX42003 | 1/16" | 3/16" | 1/16" | 1/4" | 50 PSI | 29.9 in. Hg | 25ft |
| AVX42007 | 1/8" | 1/4" | 1/16" | 1/2" | 34 PSI | 29.9 in. Hg | 25ft |
| AVX42012 | 3/16" | 5/16" | 1/16" | 3/4" | 25 PSI | 29.9 in. Hg | 25ft |
| AVX42017 | 1/4" | 3/8" | 1/16" | 1" | 20 PSI | 15.0 in. Hg | 25ft |
| AVX42019 | 1/4" | 1/2" | 1/8" | 3/4" | 35 PSI | 29.9 in. Hg | 25ft |
| AVX42022 | 5/16" | 7/16" | 1/16" | 1-1/4" | 16 PSI | 10.0 in. Hg | 25ft |
| AVX42029 | 3/8" | 5/8" | 1/8" | 1" | 25 PSI | 29.9 in. Hg | 25ft |
| AVX42038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 20 PSI | 20.0 in. Hg | 25ft |
| AVX06057 | 3/4" | 1-1/4" | 1/4" | 1-3/4" | 24 PSI | 29.9 in. Hg | 10ft |
| AVX06064 | 1" | 1-3/8" | 3/16" | 3-1/4" | 15 PSI | 5.0 in. Hg | 10ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon S3™ E-LFL Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
