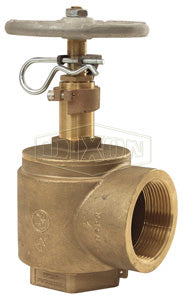

AVAPRF250-I Dixon Cast Brass Global Adjustable Pressure Restricting Angle Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Female NPT Outlet
Dixon

AVAPRF250-I Dixon Cast Brass Global Adjustable Pressure Restricting Angle Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Female NPT Outlet

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • NFPA requires restricting valves where the inlet pressure exceeds 100 PSI. Unlike the pressure regulating type of valve, the restricting valve has no effect on the static pressure of a system.
  • Preset orifices restrict the volume of water thereby lowering the pressure of the flowing water; NFPA requires restricting valves where inlet pressure exceeds 100 PSI.
  • Restricting valve has no effect on the static pressure of a system.
  • Restricting device can be manually by passed if required by opening the valve fully: pull the pin allowing the yoke to fall back from the valve stem which allows valve to be fully opened, when valve needs to be restricted again, slide the yoke back into place to be NFPA compliant.
Size A
(male)		 B
(female)		 C
(closed)		 C
(open)		 D E
(male)		 F
(female)
1-1/2" 2-7/32" 2-11/64" 7-53/64" 8-39/64" 3-3/4" 2-7/16" 2-13/32"
2-1/2" 3-7/32" 3-3/16" 9-25/32" 11-13/32" 5" 3-19/32" 3-17/32"
Part Number Inlet Outlet Weight
(Lbs.)
AVAPR150F-I 1-1/2" Female NPT 1-1/2" Male NST (NH) 5.0000
AVAPRF150-I 1-1/2" Female NPT 1-1/2" Female NPT 5.0000
AVAPRF250-I 2-1/2" Female NPT 2-1/2" Female NPT 12.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
