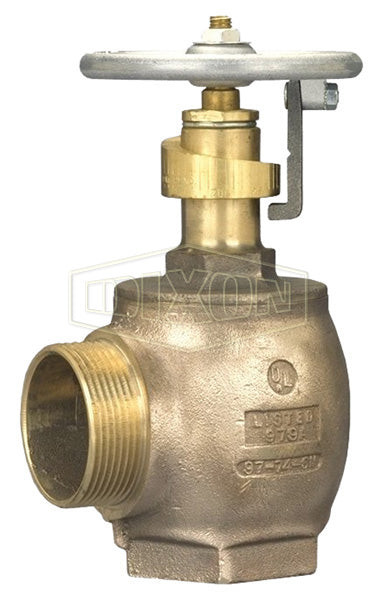

AVAPR150F Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet

AVAPR150F Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet

Sale price$544.16

Dixon Fire Fittings
Domestic Adjustable Pressure Restricting Angle Valves

Used when flowing water pressure needs to be controlled.
Buy More, Save More!
Quantity Price Each
5–14 $511.51
15–29 $462.54
30+ $408.12
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Female NPT
  • 1-1/2in Male NST
Material(s):
  • Brass
Features:
  • Preset orifices restrict the volume of water thereby lowering the pressure of the flowing water; NFPA requires restricting valves where inlet pressure exceeds 100 PSI.
  • Restricting valve has no effect on the static pressure of a system.
  • Can be manually by-passed if required by opening the valve fully, this is accomplished by breaking the breakable link, which allows the valve stem to rise to the full open position.
  • Breakable link also serves as an indication of valve condition and status; if valve is opened without breaking the link it will resume its previous position and no resetting is necessary.
  • Restricts inlet pressure from 70 PSI up to a maximum of 175 PSI.
  • Restricts down to outlet pressures of 65, 80 or 100 PSI, outlet pressures may be set below 65 PSI when authorized by the local authority having jurisdiction.
  • Restricts only under flow conditions.
  • Setting charts are packed with valve.
  • UL listed.
  • New York City Board of Standards and Appeals, approval # MEA 54-07-E.
  • Maximum operating pressure: up to 175 PSI.
  • Aluminum handwheel.
Part Number Inlet Outlet Weight
(Lbs.)
AVAPR150F 1-1/2" Female NPT 1-1/2" Male NST (NH) 6.3000
AVAPR250F 2-1/2" Female NPT 2-1/2" Male NST (NH) 13.5800
AVAPRF150 1-1/2" Female NPT 1-1/2" Female NPT 5.0000
AVAPRF250 2-1/2" Female NPT 2-1/2" Female NPT 12.0000
