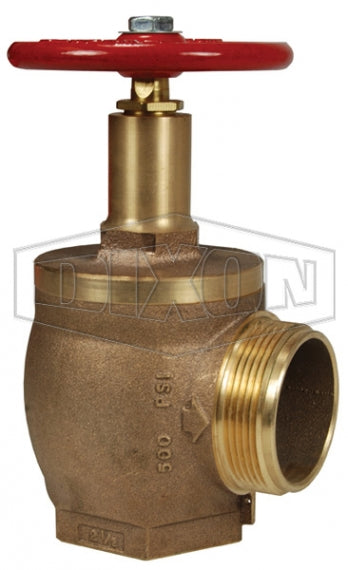

AV5-250NYFD Dixon Brass 500# Angle Hose Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet

AV5-250NYFD Dixon Brass 500# Angle Hose Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet

Sale price$662.58

Dixon Fire Fittings
500# Angle Hose Valve - Cast Brass

The only angle valve designed and approved to manage 500 PSI pressure in piping systems where it is necessary to access the system for a fire hose connection. Typical applications are in fire department, gravity and pressure tank connections, test connections and public water supplies to sprinkler and standpipe systems.
Buy More, Save More!
Quantity Price Each
5–14 $622.83
15–29 $563.19
30+ $496.94
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 2-1/2in Female NPT
  • 2-1/2in Male NYFD
Material(s):
  • Brass
Features:
  • Designed and approved to manage 500 PSI pressures in piping systems.
  • Red handwheel.
  • Factory Mutual approved.
  • New York City Board of Standards and Appeals, approval # MEA 54-07-E.
  • Maximum operating pressure: 500 PSI at 70°F (21°C).
Part Number Inlet Outlet Weight
(Lbs.)
AV5-250F 2-1/2" Female NPT Inlet 2-1/2" Male NST (NH) Outlet 13.9000
AV5-250NYFD 2-1/2" Female NPT Inlet 2-1/2" Male NYFD Outlet 12.5000
AVF5-250 2-1/2" Female NPT Inlet 2-1/2" Female NPT Outlet 13.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
