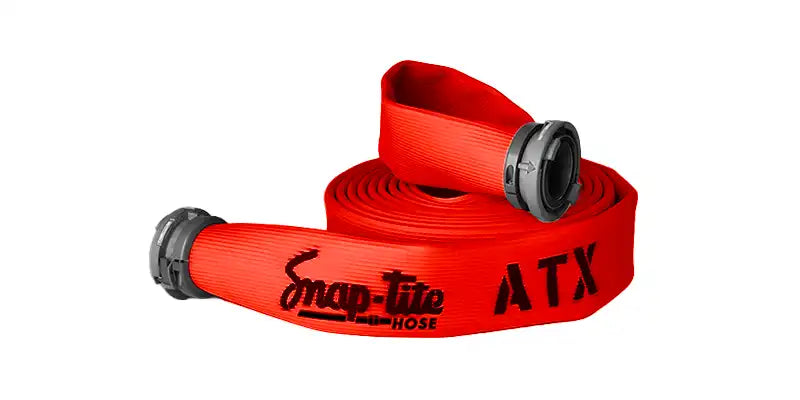

ATX50X25R50S by Snap-Tite | ATX Series | 3-Ply Fire Hose Assembly with Nitrile Liner | 5" Hose I.D. with 5" Storzs | 300 PSI | Red | 25ft Length

ATX50X25R50S by Snap-Tite | ATX Series | 3-Ply Fire Hose Assembly with Nitrile Liner | 5" Hose I.D. with 5" Storzs | 300 PSI | Red | 25ft Length

Sale price$901.43

Snap-Tite Hose
ATX™ - HIGH PRESSURE NITRILE RUBBER ATTACK/SUPPLY HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $847.34
15–29 $766.22
30+ $676.07
Discounts applied in cart/checkout.

Product Data:

Series:
  • ATX Series
Color(s):
  • Red
Internal Diameter:
  • 5in
Model: ATX™
Basic Construction: Heavy gauge 3-ply nitrile rubber cover and liner with polyester inner jacket
Application: Attack, Supply
Colors: Yellow, Red, Black
Temperature Range: -40 ° F - 200 ° F
Description:
Manufactured in a similar process as TPX™, ATX™ utilizes a 3-ply design where the cover and liner are extruded independently and double vulcanized to guarantee a consistent, compact hose wall. The polyester reinforcement can then be woven tighter, making this hose more resistant to puncture while also being easier to pack and store. ATX™ has a stronger jacket which increases the service test pressure of the LDH sizes to 300 psi (2068 kpa).
Features:
  • 3-ply rubber hose with both the cover and liner made of heavy-duty nitrile rubber and high tensile strength polyester for maximum durability and flexibility.
  • Smooth liner keeps friction loss to a minimum for greater flow.
  • Nitrile rubber cover greatly increases abrasion resistance, provides long service life, and the tightly woven reinforced jacket resists punctures.
  • Remains flexible at temperatures as low as -40 °F (-40 °C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
  • Engineered to meet the requirements of high pressure applications. Designed for relay pumping, pressurizing standpipes, and sprinkler systems.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
================= YELLOW =================
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" ATX40X25Y40S ATX40X50Y40S ATX40X100Y40S Standard 300 psi 600 psi 900 psi 1.16 35,000
5" ATX50X25Y50S ATX50X50Y50S ATX50X100Y50S Standard 300 psi 600 psi 900 psi 1.58 33,667
================= RED =================
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" ATX40X25R40S ATX40X50R40S ATX40X100R40S Standard 300 psi 600 psi 900 psi 1.16 35,000
5" ATX50X25R50S ATX50X50R50S ATX50X100R50S Standard 300 psi 600 psi 900 psi 1.58 33,667
================= BLACK =================
Black
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" ATX40X25K40S ATX40X50K40S ATX40X100K40S Standard 300 psi 600 psi 900 psi 1.16 35,000
5" ATX50X25K50S ATX50X50K50S ATX50X100K50S Standard 300 psi 600 psi 900 psi 1.58 33,667

*1-year warranty.

*Potable water approved: No

*Quality Management System Certification: ISO 9001:2015 Registration #11-R1045

Snap-Tite Hose

Snap-tite Hose is a premier American manufacturer of high-performance lay-flat and industrial hoses trusted across firefighting, municipal, agricultural, and industrial markets. With more than 55 years of engineering excellence and innovation, Snap-tite produces rugged, lightweight, and reliable hose solutions built to perform in the toughest conditions — from firegrounds to farms and heavy-duty industrial sites. Every hose is proudly made in the USA to strict quality standards, delivering durability and confidence to the professionals who depend on them.
