ATW00007 Versilon™ by Saint Gobain | ReVive | 100% Pre-Consumer Recycled Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Versilon® ReVive | 100% Pre-Consumer Recycled Tubing

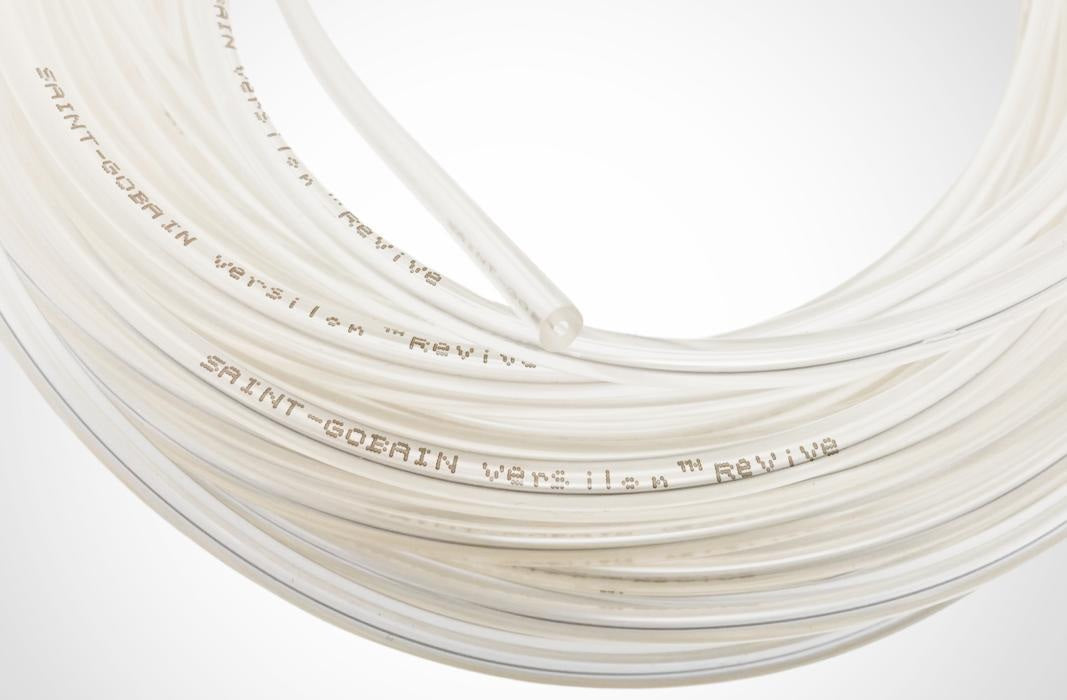

Versilon® ReVive is a translucent thermoplastic elastomer (TPE) tubing made with 100% pre-consumer recycled content for fluid management of aggressive chemicals with excellent seal and weld properties.
Package Quantity: 50 ft
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.44 |
| 40–79 | $60.98 |
| 80+ | $57.39 |
Versilon® ReVive | 100% Pre-Consumer Recycled Tubing
Versilon® ReVive translucent thermoplastic elastomer (TPE) tubing is extruded using 100% pre-consumer recycled content for fluid management with excellent sealing and welding properties. It has excellent chemical resistance to a wide range of aggressive chemicals, including acids or bases. Production is carefully controlled by collecting specific materials from internal processes through extrusion of the final product.
1
What is this product used for?
- Chemical Transfer
- Soap and Detergent Transfer
- Analytical Instruments
2
What are the key specifications?
Produced with 100% pre-consumer recycled content
N/A
None
Translucent
275°F (135°C)
-76°F (-60°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Excellent chemical resistance.
- Produced with 100% pre-consumer recycled content.
- Translucent, resulting in a visible fluid path.
- Flexible for ease of assembly.
- Temperature range from -76°F (-60°C) to 275°F (135°C).
- Sealable and weldable.
- Packaged in a cardboard box without plastic wrap.
- Packaging box contains up to 55% of recycled content and is 100% recyclable.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73°F (PSI)* |
Vacuum Rating at 73°F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ATW00003 | 1/16" | 3/16" | 1/16" | 0.25" | 26 PSI | 29.9 in. Hg | 50ft |
| ATW00007 | 1/8" | 1/4" | 1/16" | 0.25" | 17 PSI | 29.9 in. Hg | 50ft |
| ATW00012 | 3/16" | 5/16" | 1/16" | 0.50" | 13 PSI | 29.9 in. Hg | 50ft |
| ATW00017 | 1/4" | 3/8" | 1/16" | 1" | 9 PSI | 25 in. Hg | 50ft |
| ATW00022 | 5/16" | 7/16" | 1/16" | 1.5" | 9 PSI | 15 in. Hg | 50ft |
| ATW00027 | 3/8" | 1/2" | 1/16" | 1.5" | 8 PSI | 15 in. Hg | 50ft |
| ATW00038 | 1/2" | 3/4" | 1/8" | 1.75" | 10 PSI | 29.9 in. Hg | 50ft |
| ATW00046 | 5/8" | 7/8" | 1/8" | 2.5" | 8 PSI | 20 in. Hg | 50ft |
| ATW00053 | 3/4" | 1" | 1/8" | 4" | 6 PSI | 10 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® ReVive Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
