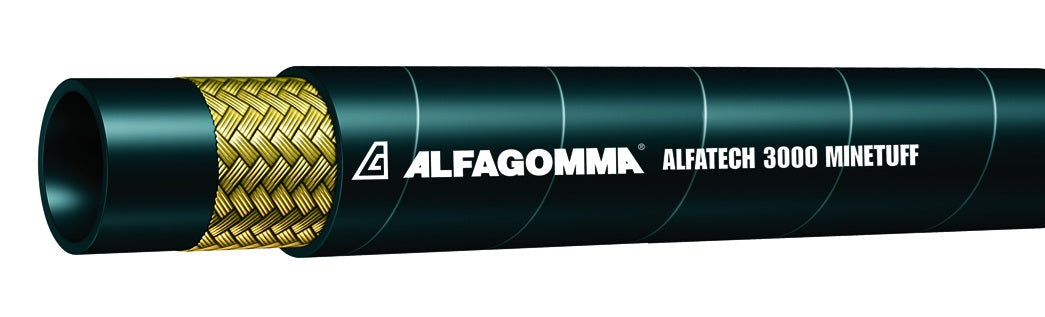

AT3KMT-04 Alfagomma Alfatech by Kuriyama | AT3KMT Series | SAE 100R17 | Minetuff Hydraulic Hose | 1-Wire Braid | 1/4" ID | 0.47" OD | 3250 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Medium pressure service with petroleum based hydraulic fluids such as hot oil, grease, lubricants, and crude oils, air and water. Developed to withstand punishing conditions and to meet increasing pressure pulsing, flexing and temperature demands not currently covered by International specifications. | SAE Rating: | SAE 100R17 |
|---|---|---|---|
| Other Ratings: | Meets or exceeds EN 857 1SC (Sizes 04 and 06) MSHA IC-152/16 Approved Flame Resistance |
Tube: | Synthetic rubber, black... oil-resistant |
| Reinforcement: | One layer of high tensile steel wire braid reinforcement | Cover: | Synthetic rubber, black... oil, fuel, weather, ozone and abrasion-resistant |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) constant operation Maximum operating temperature: +250°F (+121°C) |
Air Maximum Temperature: | +175°F (+80°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose. |
| Branding: | ALFAGOMMA AT3K MINETUFF ID...WP MPa... MPa... SAE 100R17 - DN... MSHA IC- 152/16 - Q/YR | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| AT3KMT-04 | 1/4" | 6.4mm | 0.47" | 2.0mm | 3250 PSI | 1.9" | 48.3mm | 0.12 lbs/ft |
| AT3KMT-06 | 3/8" | 9.5mm | 0.61" | 15.4mm | 3120 PSI | 2.5" | 63.5mm | 0.18 lbs/ft |
| AT3KMT-08 | 1/2" | 12.7mm | 0.76" | 19.2mm | 3000 PSI | 3.5" | 88.9mm | 0.25 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
