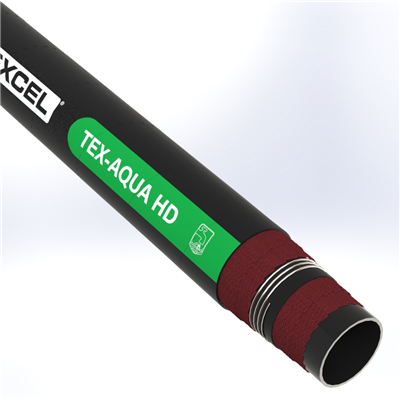

AQUA-HD-10.0 by Texcel | TEX-AQUA HD Series | Corrugated Cover Heavy-Duty Water Suction & Discharge Hose | 10" Hose ID | 50 PSI | 25 in/Hg Vacuum Rated | Black
Texcel
TEX-FLO 2MD Series | Medium-Duty 2-Ply Water Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 20 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $159.41 |
| 8–14 | $152.62 |
| 15+ | $135.66 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling. | Tube: | Black, SBR/EPDM blend |
| Cover: | Black, SBR/EPDM blend | Reinforcement: | High tensile tire cord plies; helix wire |
| Safety Factor : | 3:1 | Temperature: | -40°F to +180°F |
| Ends: | Soft cuffs available on 6" and 8" sizes only | Branding: | TEXCEL® TEX-AQUA HD - HEAVY DUTY WATER SUCTION & DISCHARGE HOSE XXX PSI W.P. |
| Note: | 6" and 8" available in a smooth or corrugated cover For extra flexibility use 5"-12" corrugated | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft | |
|---|---|---|---|---|---|---|---|
| SMOOTH COVER | |||||||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft | |
| AQUA-HD-1.0-100 | 1" | 1-19/64" | 150 psi | 29 | 4" | 0.50 lbs | |
| AQUA-HD-1.25 | 1-1/4" | 1-45/64" | 150 psi | 29 | 5" | 0.62 lbs | |
| AQUA-HD-1.5 | 1-1/2" | 2.03" | 150 psi | 29 | 7" | 0.85 lbs | |
| AQUA-HD-2.0 | 2" | 2-28/64" | 150 psi | 29 | 10" | 1.16 lbs | |
| AQUA-HD-2.5 | 2-1/2" | 2-56/64" | 150 psi | 29 | 11" | 1.31 lbs | |
| AQUA-HD-3.0 | 3" | 3-29/64" | 150 psi | 29 | 12" | 1.79 lbs | |
| AQUA-HD-4.0 | 4" | 4-32/64" | 150 psi | 29 | 14" | 2.55 lbs | |
| AQUA-HD-6.0 | 6" | 6-40/64" | 150 psi | 25 | 19" | 5.90 lbs | |
| AQUA-HD-S-8.0 | 8" | 8-40/64" | 150 psi | 25 | 20" | 7.90 lbs | |
| CORRUGATED COVER | |||||||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft | |
| AQUA-HD-5.0 | 5" | 5-41/64" | 150 psi | 25 | 14" | 4.50 lbs | |
| AQUA-HD-6.0 | 6" | 6-44/64" | 150 psi | 25 | 15" | 5.50 lbs | |
| AQUA-HD-8.0 | 8" | 8-48/64" | 150 psi | 25 | 18" | 7.50 lbs | |
| AQUA-HD-10.0 | 10" | 10-48/64" | 150 psi | 20 | 20" | 8.50 lbs | |
| AQUA-HD-12.0 | 12" | 12-56/64" | 150 psi | 20 | 20" | 12.00 lbs | |
