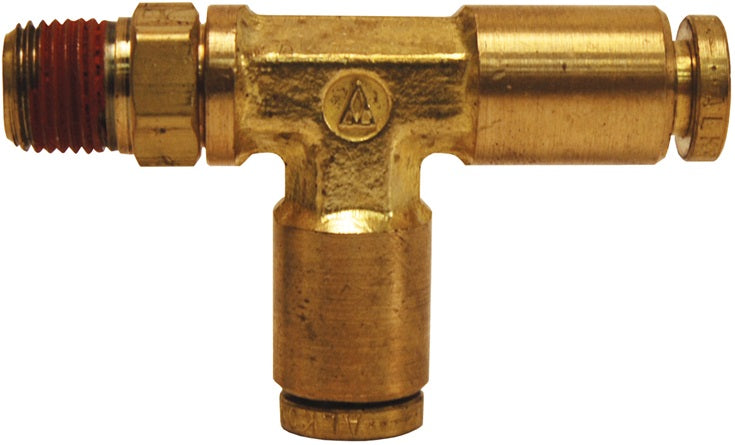

AQ71DOTS4X4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Swivel Run Tee | 1/4" Male NPTF x 1/4" Tube OD x 1/4" Tube OD | Brass CA377

AQ71DOTS4X4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Swivel Run Tee | 1/4" Male NPTF x 1/4" Tube OD x 1/4" Tube OD | Brass CA377

Sale price$17.08

Dixon Valve & Coupling
D.O.T. Push-In Fitting | Male Swivel Run Tee | Male NPTF x Tube End x Tube End

Recommended for use with J844 Air Brake Tubing.
Buy More, Save More!
Quantity Price Each
10–39 $16.06
40–79 $14.52
80+ $12.81
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Male NPT
Material(s):
  • Brass
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass Brass CA377
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. Male NPTF
AQ71DOTS4X2 1/4" 1/8"
AQ71DOTS4X4 1/4" 1/4"
