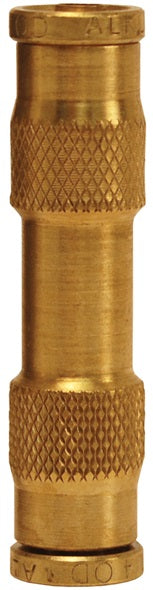

AQ62DOT4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Union Connector | 1/4" Tube OD x 1/4" Tube OD | Brass CA360

AQ62DOT4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Union Connector | 1/4" Tube OD x 1/4" Tube OD | Brass CA360

Sale price$12.97

Dixon Valve & Coupling
D.O.T. Push-In Fitting | Union Connectors | Tube End x Tube End

Recommended for use with J844 Air Brake Tubing.
Buy More, Save More!
Quantity Price Each
10–39 $12.19
40–79 $11.02
80+ $10.38
Discounts applied in cart/checkout.
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass CA360
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. x Tube O.D.
AQ62DOT4 1/4" x 1/4"
AQ62DOT6 3/8" x 3/8"

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
