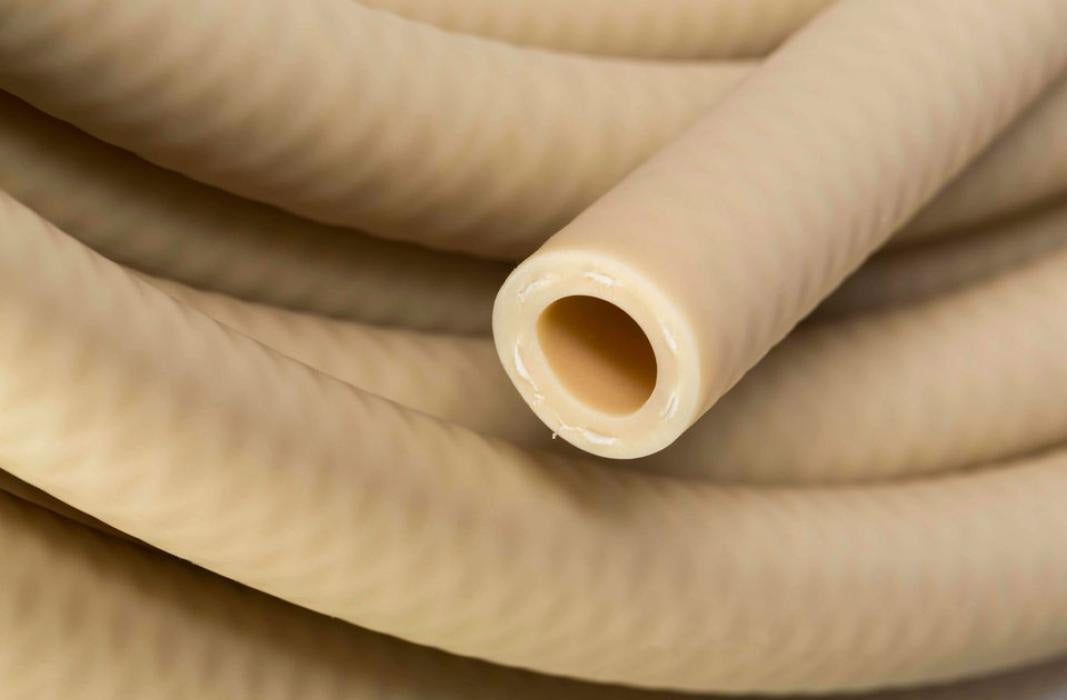

APW00029 Tygon® by Saint Gobain | A-60-F IB | Reinforced Food & Beverage Process Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length
Saint Gobain
Tygon® A-60-F IB | Reinforced Food & Beverage Process Tubing
Tygon® A-60-F IB tubing from Saint-Gobain can withstand elevated pressure and extreme temperatures from -75°F to 275°F without cracking or deteriorating, making it ideal for both clean-in-place and steam-in-place sterilization and cleaning systems.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $259.38 |
| 15–29 | $234.55 |
| 30+ | $220.75 |
Tygon® A-60-F IB | Reinforced Food & Beverage Process Tubing
This tubing is resistant to many harsh animal and vegetable oils, as well as acids and alkali, and is compatible with numerous oxidizing agents such as peroxide, hypochlorite, and ozone. This high-performance, reinforced tubing can be repeatedly autoclaved for up to five cycles without affecting its overall service life.
1
What is this product used for?
- Food and beverage dispensing
2
What are the key specifications?
Thermoplastic Elastomer
Thermoplastic Elastomer
Braided
Cream
275°F (135°C)
-75°F (-60°C)
FDA 21 CFR, 177.2600 criteria
NSF®-51
3-A
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature resistant from -75°F to 275°F.
- Ozone and UV light resistant.
- Repeatedly autoclavable.
- Chemically compatible with a wide range of cleaners.
- Compatible with virtually all common sanitizers and cleaners.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Max. Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| APW00019 | 1/4" | 1/2" | 1/8" | 3/4" | 125 PSI | 70 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| APW00029 | 3/8" | 5/8" | 1/8" | 1-1/4" | 105 PSI | 65 PSI | 29.9 in. Hg | 20.0 in. Hg | 50ft |
| APW00038 | 1/2" | 3/4" | 1/8" | 2-1/4" | 100 PSI | 60 PSI | 25.0 in. Hg | 15.0 in. Hg | 50ft |
| APW00046 | 5/8" | 7/8" | 1/8" | 2-1/2" | 95 PSI | 55 PSI | 20.0 in. Hg | 10.0 in. Hg | 50ft |
| APW00054 | 3/4" | 1-1/16" | 5/32" | 3-1/4" | 85 PSI | 45 PSI | 10.0 in. Hg | 5.0 in. Hg | 50ft |
| APW00064 | 1" | 1-3/8" | 3/16" | 5" | 75 PSI | 40 PSI | 12.0 in. Hg | 7.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A-60-F Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
