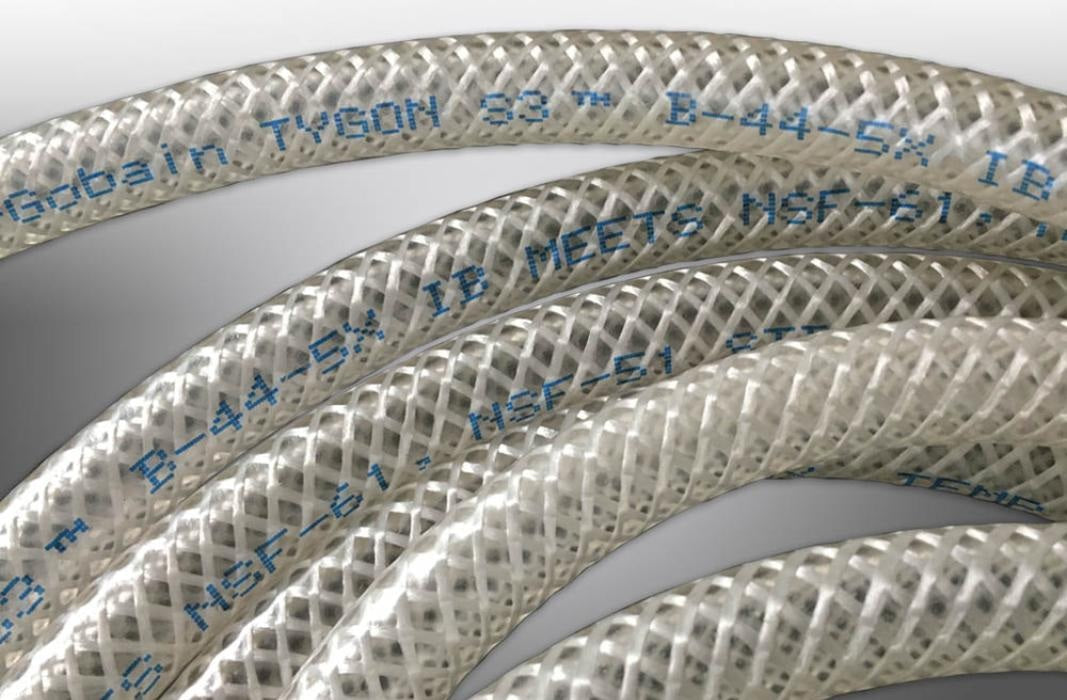

AMH00038 Tygon S3™ by Saint Gobain | B-44-5X IB | Food & Beverage Dispensing Reinforced Tubing | 1/2" ID x 3/4" OD x 1/8" Wall | Old Part #: ADA00038 | 50' Package Length
Saint Gobain
Tygon® B-44-5X IB | Food & Beverage Dispensing Reinforced Tubing
Designed specifically for food and beverage dispensing applications, its added reinforcement withstands up to four times the pressure of non-reinforced tubing.
All layers of Tygon® B-44-5X IB tubing are compliant with FDA food contact regulations.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $264.87 |
| 15–29 | $239.51 |
| 30+ | $225.42 |
Tygon® B-44-5X IB | Food & Beverage Dispensing Reinforced Tubing
Safe to be in contact with food, all layers of Tygon® B-44-5X IB tubing are compliant with FDA food contact regulations. This tubing is designed specifically for food and beverage dispensing applications involving elevated pressure. Tygon® pressure tubing is clear, lightweight, flexible, smooth, has a non-porous bore to inhibit particle entrapment, outstanding resistance to harsh alkaline cleaners, and is unaffected by commonly used sanitizers. The added reinforcement withstands up to four times the pressure of non-reinforced tubing.
1
What is this product used for?
- Water lines for beverage dispensing equipment
- Ice cream dispensing equipment
- Frozen beverages dispensing machines (smoothies, shakes, slushies)
2
What are the key specifications?
Smooth, Non-porous
N/A
Braided
Clear
165°F (74°C)
-58°F (-50°C)
NSF®-51, NSF®-61
3-A Sanitary Standard 20-27 (Multiple Use Plastic Materials)
Compliant with applicable FDA Food Additive Regulations (21 CFR 170-199)
Not intended as an implant material!
3
What are the main product features?
- All layers compliant with FDA and EU food contact regulations.
- Handles four times the pressure of non-reinforced tubing.
- Improved flexibility at sub-zero temperatures.
- Smooth, non-porous bore resists particle entrapment.
- Clear wall enables visualization of fluid flow.
- Connects easily to ReSeal® Sanitary Fittings.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73° F (PSI) |
Vacuum Rating at 73° F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AMH00018 | 1/4" | 7/16" | 3/32" | 1-1/2" | 230 PSI | 29.9 in. Hg | 50ft |
| AMH00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 275 PSI | 29.9 in. Hg | 50ft |
| AMH00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 200 PSI | 29.9 in. Hg | 50ft |
| AMH00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 165 PSI | 25.0 in. Hg | 50ft |
| AMH00053 | 3/4" | 1" | 1/8" | 3-1/4" | 145 PSI | 20.0 in. Hg | 50ft |
| AMH00064 | 1" | 1-3/8" | 3/16" | 3-3/4" | 100 PSI | 20.0 in. Hg | 50ft |
| AMH00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 85 PSI | 10.0 in. Hg | 50ft |
| AMH00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 75 PSI | 10.0 in. Hg | 50ft |
| AMH05074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 75 PSI | 10.0 in. Hg | 20ft |
| AMH05079 | 2" | 2-3/4" | 3/8" | 6-7/8" | 60 PSI | 25.0 in. Hg | 20ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® B-44-5X IB Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
