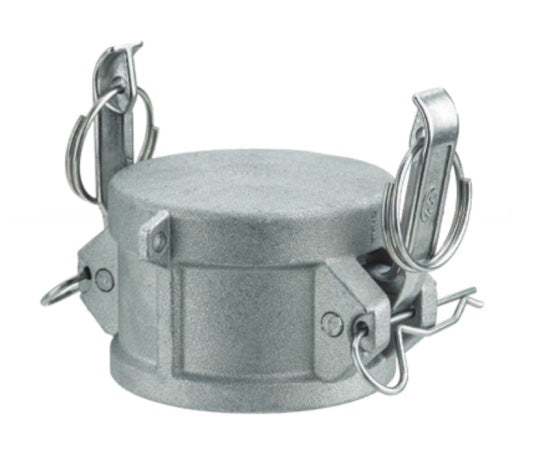

ALSH-DC300 by Kuriyama | ALSH-DC Series | Part DC | Cam & Groove Dust Cap | 3" Size | Aluminum / SS Handles
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with stainless steel handles which are preferred in agriculture markets.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| ALSH-DC100 | 1" | 250 PSI | B85 Grade 383 | 0.34 lbs |
| ALSH-DC125 | 1-1/4" | 250 PSI | B108-92 356 | 0.58 lbs |
| ALSH-DC150 | 1-1/2" | 250 PSI | B85 Grade 383 | 0.64 lbs |
| ALSH-DC200 | 2" | 250 PSI | B85 Grade 383 | 0.80 lbs |
| ALSH-DC250 | 2-1/2" | 150 PSI | B85 Grade 383 | 0.94 lbs |
| ALSH-DC300 | 3" | 150 PSI | B85 Grade 383 | 1.44 lbs |
| ALSH-DC400 | 4" | 150 PSI | B85 Grade 383 | 2.34 lbs |
Additional Product Data:
Series:
MAWP:
150
Cam & Groove Type:
Type DC
Ends Configuration:
Material(s):
Seal Material(s):
