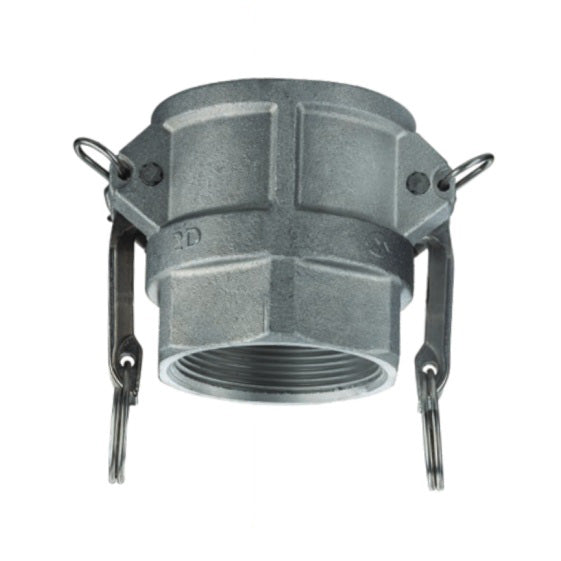

ALSH-D125 by Kuriyama | ALSH-D Series | Part D | Cam & Groove Adapter | 1-1/4" Coupler x 1-1/4" Female NPT | Aluminum / SS Handles
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | ALSH-D Series | Part D | Coupler x Female NPT | Aluminum with SS Handles
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.69 |
| 40–79 | $21.42 |
| 80+ | $18.90 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with stainless steel handles which are preferred in agriculture markets.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| ALSH-D100 | 1" | 250 PSI | B85 Grade 383 | 0.42 lbs |
| ALSH-D125 | 1-1/4" | 250 PSI | B108-92 356 | 0.68 lbs |
| ALSH-D150 | 1-1/2" | 250 PSI | B85 Grade 383 | 0.80 lbs |
| ALSH-D200 | 2" | 250 PSI | B85 Grade 383 | 0.92 lbs |
| ALSH-D250 | 2-1/2" | 150 PSI | B85 Grade 383 | 1.18 lbs |
| ALSH-D300 | 3" | 150 PSI | B85 Grade 383 | 1.80 lbs |
| ALSH-D400 | 4" | 150 PSI | B85 Grade 383 | 2.16 lbs |
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
