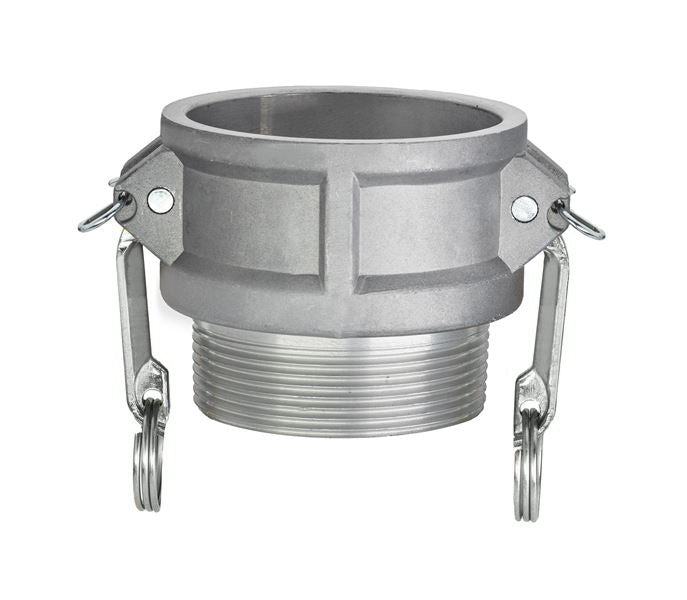

ALSH-B200 by Kuriyama | ALSH-B Series | Part B | Cam & Groove Adapter | 2" Coupler x 2" Male NPT | Aluminum / SS Handles

ALSH-B200 by Kuriyama | ALSH-B Series | Part B | Cam & Groove Adapter | 2" Coupler x 2" Male NPT | Aluminum / SS Handles

Sale price$29.47
Buy more, save moreDiscounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with stainless steel handles which are preferred in agriculture markets.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
ALSH-B100 1" 250 PSI B85 Grade 383 0.36 lbs
ALSH-B125 1-1/4" 250 PSI B108-92 356 0.62 lbs
ALSH-B150 1-1/2" 250 PSI B85 Grade 383 0.70 lbs
ALSH-B200 2" 250 PSI B85 Grade 383 0.86 lbs
ALSH-B250 2-1/2" 150 PSI B85 Grade 383 1.02 lbs
ALSH-B300 3" 150 PSI B85 Grade 383 1.56 lbs
ALSH-B400 4" 150 PSI B85 Grade 383 2.42 lbs

Additional Product Data:

Series:
  • ALSH-B Series
MAWP:

250

Shape:

Straight
