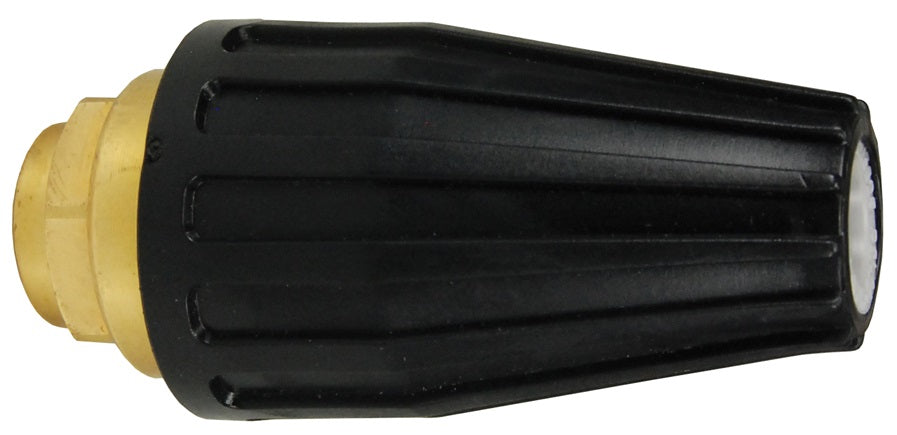

AL-TPR25-30 by Dixon Valve | Turbo Nozzle | 1/4" Female Inlet | 1.30mm Orifice | 4.0 Nozzle Size | 3700 PSI

AL-TPR25-30 by Dixon Valve | Turbo Nozzle | 1/4" Female Inlet | 1.30mm Orifice | 4.0 Nozzle Size | 3700 PSI

Sale price$136.69

Dixon Valve
Turbo Nozzle

1/4" Meg Nozzle Multi-packs Include: 0°, 15°, 25°, 40°, and 65° Soap Nozzles
Buy More, Save More!
Quantity Price Each
5–19 $128.49
20–59 $116.19
60+ $102.52
Discounts applied in cart/checkout.

Product Data:

MAWP:

3700
Features:
  • 20 ° spray angle
  • Ceramic orifice
Specifications:
  • Maximum temperature: 212 °F (100 °C).
Part Number Nozzle
Size		 Description Orifice Maximum
Working PSI
AL-TPR25-30 4.0 1/4" Female Inlet 1.30mm 3,700 PSI
AL-TPR25-50 6.0 1/4" Female Inlet 1.50mm 3,700 PSI
AL-TPR25-70 7.0 1/4" Female Inlet 1.70mm 3,700 PSI
AL-TPR35-30 4.0 1/4" Female Inlet 1.30mm 5,075 PSI
AL-TPR35-50 6.0 1/4" Female Inlet 1.50mm 5,075 PSI
AL-TPR35-70 7.0 1/4" Female Inlet 1.70mm 5,075 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
