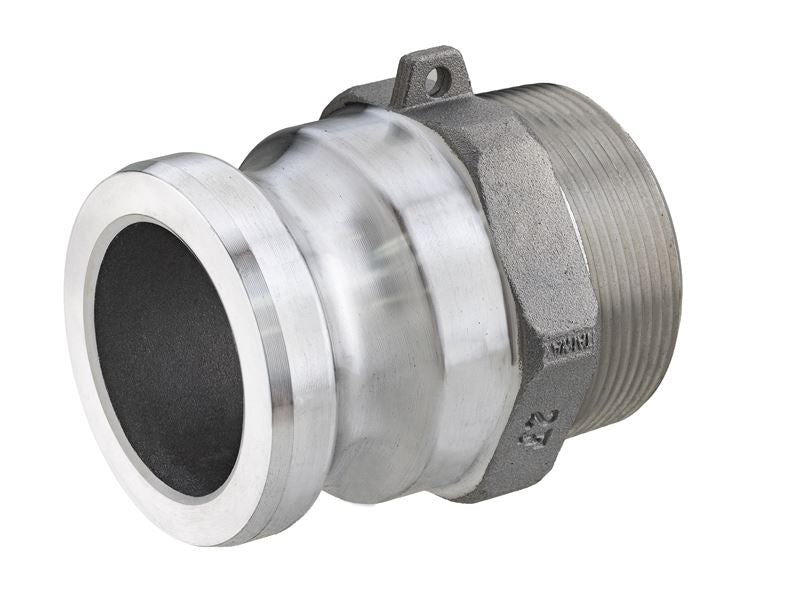

AL-F200 by Kuriyama | AL-F Series | Part F | Cam & Groove Adapter | 2" Adapter x 2" Male NPT | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-F Series | Part F | Adapter x Male NPT | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.24 |
| 40–79 | $14.69 |
| 80+ | $12.96 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Kuriyama offers two 8" coupling styles in aluminum.*
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Adapter Size (in) |
Male NPT (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-F050 | 1/2" | 1/2" | 250 PSI | B211 Grade 6063 | 0.14 lbs |
| AL-F075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.16 lbs |
| AL-F100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.20 lbs |
| AL-F125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.34 lbs |
| AL-F150 | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.46 lbs |
| AL-F200 | 2" | 2" | 250 PSI | B85 Grade 383 | 0.68 lbs |
| AL-F2015 | 2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.64 lbs |
| AL-F2030 | 2" | 3" | 250 PSI | B85 Grade 383 | 1.06 lbs |
| AL-F250 | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 0.96 lbs |
| AL-F300 | 3" | 3" | 150 PSI | B85 Grade 383 | 1.30 lbs |
| AL-F3020 | 3" | 2" | 150 PSI | B85 Grade 383 | 0.86 lbs |
| AL-F3040 | 3" | 4" | 150 PSI | B85 Grade 383 | 1.78 lbs |
| AL-F400 | 4" | 4" | 150 PSI | B85 Grade 383 | 2.32 lbs |
| AL-F4030 | 4" | 3" | 150 PSI | B85 Grade 383 | 1.57 lbs |
| AL-F500 | 5" | 5" | 75 PSI | B108-92 356 | 2.94 lbs |
| AL-F600 | 6" | 6" | 75 PSI | B85 Grade 383 | 3.92 lbs |
| AL-F800 | 8" | 8" | 50 PSI | B108-92 356 | 7.94 lbs |
| AL-F1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 10.58 lbs |
| HDAL-F801 | 8" | 8" | 50 PSI | B26, Grade 713 | 9.95 lbs |
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-F800. If the measurement is more than 9" it is HDAL-F801.
