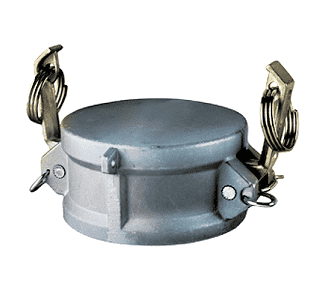

AL-DC125 by Kuriyama | Quick-Acting Coupling | Part DC | 1-1/4" Dust Cap | Aluminum

AL-DC125 by Kuriyama | Quick-Acting Coupling | Part DC | 1-1/4" Dust Cap | Aluminum

Sale price$26.98

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - Aluminum

Buy More, Save More!
Quantity Price Each
10–39 $25.36
40–79 $22.93
80+ $20.24
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 1-1/4in Female Cam & Groove
Material(s):
  • Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts.
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
AL-DC050 1/2" 0.18 lbs
AL-DC075 3/4" 0.22 lbs.
AL-DC100 1" 0.34 lbs.
AL-DC125 1-1/4" 0.58 lbs.
AL-DC150 1-1/2" 0.64 lbs.
AL-DC200 2" 0.8 lbs.
AL-DC250 2-1/2" 0.94 lbs.
AL-DC300 3" 1.44 lbs.
AL-DC400 4" 2.34 lbs.
AL-DC500 5" 3.06 lbs.
AL-DC600 6" 4.66 lbs.
AL-DC800 8" 9.04 lbs.
AL-DC1000 10" 12.54 lbs.
HDAL-DC801 8" 10.63 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
