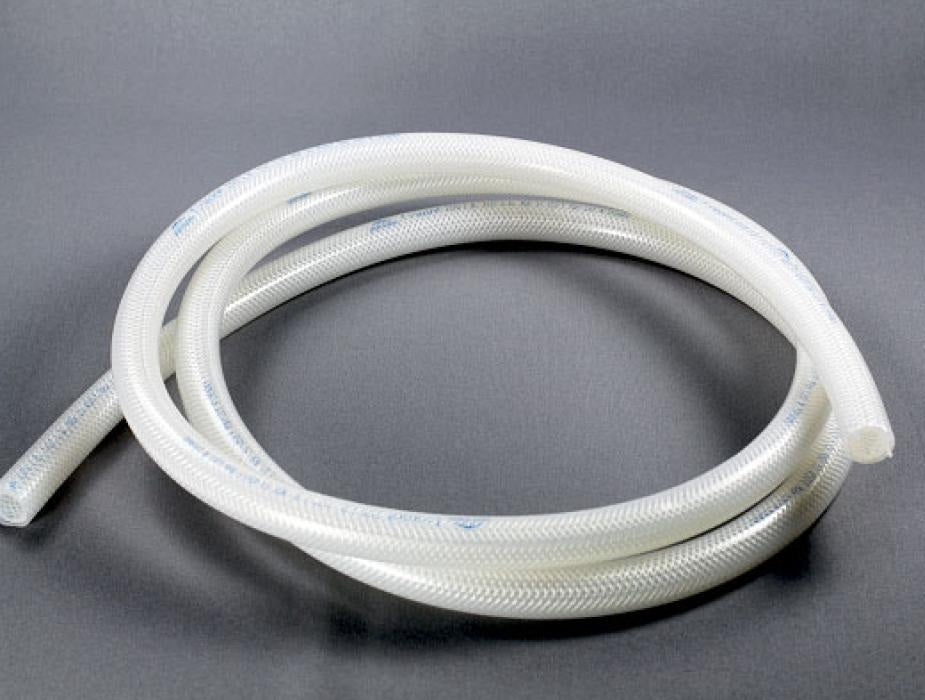

AHJ1719NSF Tygon® by Saint Gobain | SPT-3370 IB | Reinforced Silicone Food and Beverage Transfer Tubing | 1/4" ID x .515" OD | 50' Package Length
Minimum Order Quantity: 6 Units
Saint Gobain
Tygon® SPT-3370 IB | Reinforced Silicone Food and Beverage Transfer Tubing
Braid reinforced for increased pressure resistance, Tygon® SPT-3370 IB silicone tubing is frequently specified in the most demanding applications requiring sanitary transfer of fluids.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $825.56 |
| 15–29 | $746.51 |
| 30+ | $702.60 |
Tygon® SPT-3370 IB | Reinforced Silicone Food and Beverage Transfer Tubing
Tygon® SPT-3370 IB tubing from Saint-Gobain is braid-reinforced for increased pressure resistance. It is highly flexible and durable, as well as resistant to chemicals and extreme temperatures, which makes it ideal for the most demanding fluid transfer applications. Its smooth inner surface reduces extractable content and the risk of particle entrapment, as well as microscopic bacterial build-up. This improves fluid flow by reducing the tubing’s surface area – helping to lower the amount of fluid that gets absorbed by the tubing’s wall. Additionally, it can easily withstand repeated SIP and CIP cleaning and sterilization cycles.
1
What is this product used for?
- Beverage dispensing
- Food and dairy processing
- Bottle filling
- Hot fill lines
- Food handling
2
What are the key specifications?
Platinum-Cured Silicone
Platinum-Cured Silicone
Braided
Translucent
320°F (160°C)
-112°F (-80°C)
3-A Sanitary Standard No. 18-01
FDA 21 CFR 175.300
NSF®-51 Certification
Not intended as an implant material!
3
What are the main product features?
- Consistently smooth inner surface limits particle entrapment.
- Platinum-cured to minimize extractable.
- Tough braid reinforcement permits use under elevated working pressures.
- Withstands repeated CIP and SIP cleaning and sterilization.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73°F (PSI) |
Max. Working Pressure at 320°F (PSI) |
Vacuum Rating at 73°F (in. Hg) |
Vacuum Rating at 320°F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|
| AHJ1718NSF | 3/16" | 0.443" | 1/4" | 170 PSI | 125 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1719NSF | 1/4" | 0.515" | 1/2" | 150 PSI | 105 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1720NSF | 3/8" | 0.687" | 3/4" | 130 PSI | 95 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1721NSF | 1/2" | 0.847" | 1-1/4" | 125 PSI | 90 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1722NSF | 5/8" | 0.980" | 1-1/2" | 110 PSI | 80 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1671NSF | 3/4" | 1.150" | 2-1/4" | 100 PSI | 75 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AHJ1724NSF | 1" | 1.390" | 3-1/2" | 70 PSI | 50 PSI | 15.0 in. Hg | 10.0 in. Hg | 50ft |
| AHJ1725NSF | 1-1/4" | 1.636" | 5-3/4" | 55 PSI | 40 PSI | 10.0 in. Hg | 5.0 in. Hg | 25ft |
| AHJ1726NSF | 1-1/2" | 1.900" | 6-3/4" | 40 PSI | 30 PSI | 5.0 in. Hg | 0.0 in. Hg | 25ft |
| AHJ1798NSF | 2" | 2.432" | 8-3/4" | 20 PSI | 12 PSI | 0.0 in. Hg | 0.0 in. Hg | 25ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® SPT-3370 IB Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
