AFT-20 Alfagomma by Kuriyama | A Series / AFT Series | Two-Piece Non-Skive Ferrule | -20 Hose Dash Size | 1-1/4" Hose ID | Stainless Steel

AFT-20 Alfagomma by Kuriyama | A Series / AFT Series | Two-Piece Non-Skive Ferrule | -20 Hose Dash Size | 1-1/4" Hose ID | Stainless Steel

Sale price$28.25

Kuriyama of America Inc.

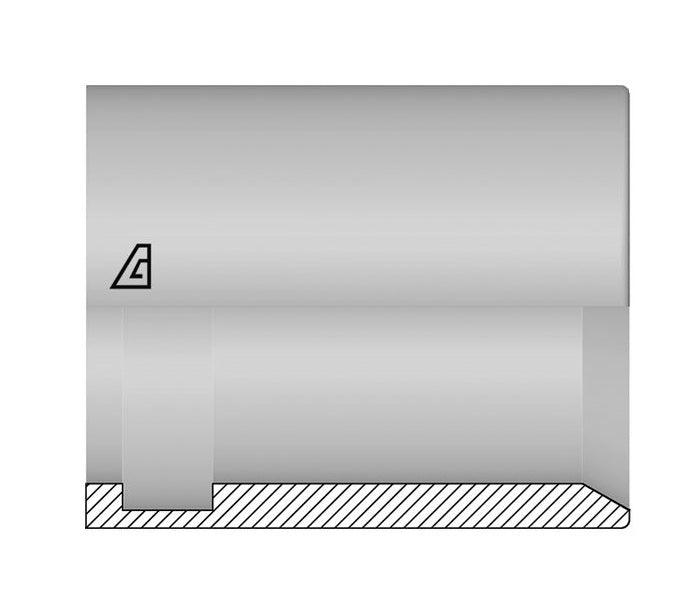

Alfagomma | A Series / AFT Series | Two-Piece Non-Skive Ferrule
Buy More, Save More!
Quantity Price Each
10–39 $26.56
40–79 $24.01
80+ $21.19
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
  • AFT Series
Material(s):
  • Stainless Steel
About A Series / AFT Series Ferrules:
  • Two piece non-skive stainless steel ferrule for use with "A" insert on stainless braided PTFE hose (TR14TB).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Dash
Size		 Hose ID Size B
OD		 L
Length		 Weight
(in.) (mm) (mm) (mm) lbs/each
AFT-03 03 3/16" 4.8mm 14.0mm 20mm 0.02 lbs
AFT-04 04 1/4" 6.4mm 15.0mm 25mm 0.03 lbs
AFT-05 05 5/16" 7.9mm 17.2mm 25mm 0.04 lbs
AFT-06 06 3/8" 9.5mm 22.0mm 25mm 0.07 lbs
AFT-08 08 1/2" 12.7mm 25.0mm 30mm 0.08 lbs
AFT-10 10 5/8" 15.9mm 30.0mm 33mm 0.11 lbs
AFT-12 12 3/4" 19.0mm 35.0mm 37mm 0.15 lbs
AFT-16 16 1" 25.4mm 42.0mm 45mm 0.26 lbs
AFT-20 20 1-1/4" 31.8mm 50.0mm 48mm 0.34 lbs
AFT-24 24 1-1/2" 38.1mm 57.0mm 58mm 0.48 lbs
AFT-32 32 2" 50.8mm 73.0mm 67mm 0.73 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
