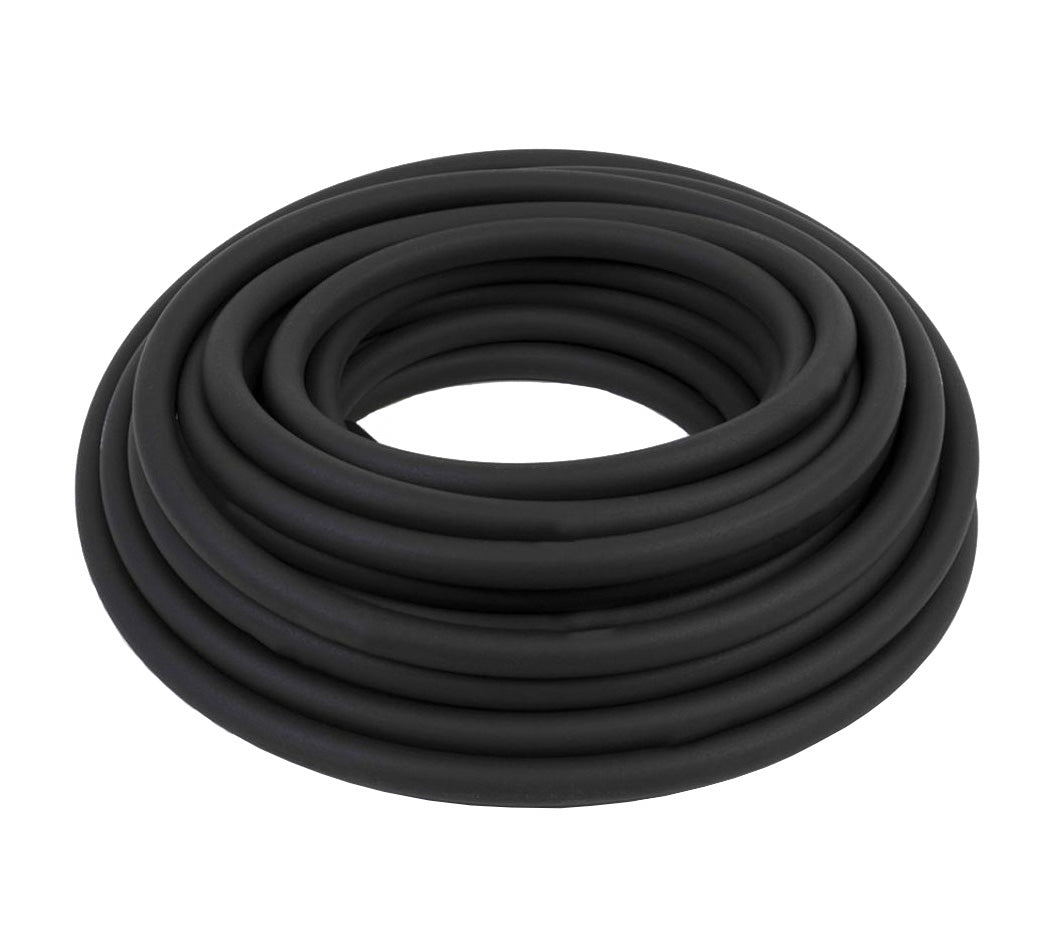

AFL00019 Tygon® by Saint Gobain | A-60-G | High-Performance Chemical Dispensing Tubing | 1/4" ID x 1/2" OD x 1/8" Wall | 50' Package Length
Saint Gobain
Tygon® A-60-G | High-Performance Chemical Dispensing Tubing
An ideal alternative to rubber tubing.
Specially formulated for chemical dispensing, Tygon® A-60-G tubing outperforms neoprene, EPDM and other general-purpose tubing.
Ideal for Use in Vacuum Systems.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $106.61 |
| 20–59 | $96.40 |
| 60+ | $90.73 |
Tygon® A-60-G Tubing
Tygon® A-60-G tubing from Saint-Gobain is engineered to outperform neoprene, EPDM, and other general-purpose tubing used in peristaltic pumps. This high-performance tubing is resistant to acids and alkali, and it can withstand extreme temperatures from -75°F to 275°F without cracking or deteriorating. It is heat sealable and can be joined without fittings for easy installation.
1
What is this product used for?
- Soap and disinfectant dispensing
- Cleaning chemical transfer
- Caustic chemical dispensing
- Plating and etching chemicals
- Glass and window wash systems
- Vacuum pumps
2
What are the key specifications?
N/A
N/A
None
Black
275°F (135°C)
-75°F (-60°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Superior weathering.
- Abrasion resistant.
- Outstanding flexural fatigue resistance.
- Wide temperature range (-75°F to 275°F).
- Low gas permeability versus rubber tubing.
- Ozone* and UV light resistant *300 pphm.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI)* |
Max. Suggested Working Pressure at 180 deg. F (PSI)* |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AFL00003 | 1/16" | 3/16" | 1/16" | 1/4" | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00008 | 1/8" | 3/8" | 1/8" | 1/2" | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 8 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00013 | 3/16" | 3/8" | 3/32" | 1/2" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00017 | 1/4" | 3/8" | 1/16" | 7/8" | 10 PSI | 6 PSI | 29.9 in. Hg | 15.8 in. Hg | 50ft |
| AFL00018 | 1/4" | 7/16" | 3/32" | 3/4" | 15 PSI | 9 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00019 | 1/4" | 1/2" | 1/8" | 3/4" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00020 | 1/4" | 5/8" | 3/16" | 1/2" | 26 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00022 | 5/16" | 7/16" | 1/16" | 1-1/4" | 8 PSI | 5 PSI | 20.2 in. Hg | 10.1 in. Hg | 50ft |
| AFL00023 | 5/16" | 1/2" | 3/32" | 1.0" | 12 PSI | 7 PSI | 29.9 in. Hg | 25.0 in. Hg | 50ft |
| AFL00026 | 5/16" | 13/16" | 1/4" | 1/2" | 28 PSI | 17 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00027 | 3/8" | 1/2" | 1/16" | 1-3/8" | 7 PSI | 4 PSI | 14.1 in. Hg | 7.0 in. Hg | 50ft |
| AFL00028 | 3/8" | 9/16" | 3/32" | 1-1/2" | 10 PSI | 6 PSI | 29.9 in. Hg | 15.0 in. Hg | 50ft |
| AFL00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 13 PSI | 8 PSI | 29.9 in. Hg | 27.7 in. Hg | 50ft |
| AFL00032 | 7/16" | 9/16" | 1/16" | 2-1/4" | 6 PSI | 4 PSI | 5.0 in. Hg | 0.0 in. Hg | 50ft |
| AFL00036 | 1/2" | 5/8" | 1/16" | 3.0" | 6 PSI | 3 PSI | 15.0 in. Hg | 0.0 in. Hg | 50ft |
| AFL00037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 8 PSI | 5 PSI | 20.0 in. Hg | 10.0 in. Hg | 50ft |
| AFL00038 | 1/2" | 3/4" | 1/8" | 1-1/8" | 10 PSI | 6 PSI | 29.6 in. Hg | 15.6 in. Hg | 50ft |
| AFL00045 | 5/8" | 13/16" | 3/32" | 3-1/4" | 7 PSI | 4 PSI | 10.0 in. Hg | 5.0 in. Hg | 50ft |
| AFL00046 | 5/8" | 7/8" | 1/8" | 2-3/4" | 8 PSI | 5 PSI | 20.0 in. Hg | 9.9 in. Hg | 50ft |
| AFL00053 | 3/4" | 1" | 1/8" | 3-1/2" | 7 PSI | 4 PSI | 13.9 in. Hg | 6.9 in. Hg | 50ft |
| AFL00062 | 1" | 1-1/4" | 1/8" | 5.0" | 6 PSI | 3 PSI | 5.0 in. Hg | 5.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A-60-G Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
