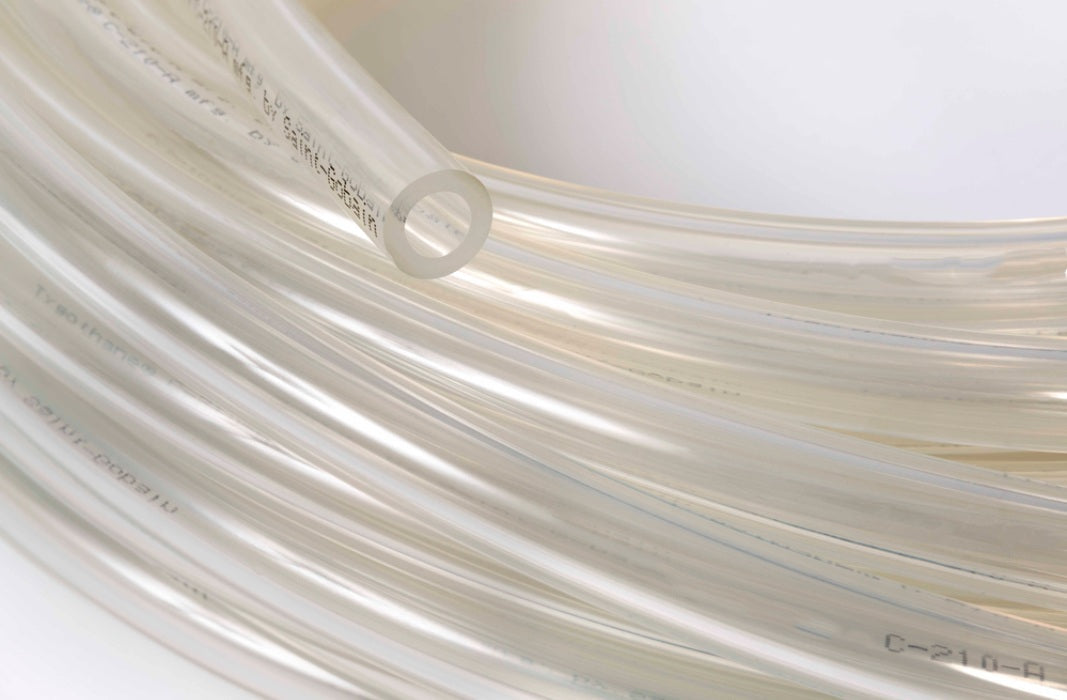

AEM02034 Versilon™ by Saint Gobain | C-210-A | Oil, Fuel, & Grease Resistant Polyurethane Tubing | 7/16" ID x 11/16" OD x 1/8" Wall | 100' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Tygon® C-210-A | Oil, Fuel, & Grease Resistant Polyurethane Tubing
Versilon® C-210-A tubing from Saint-Gobain is made from tough ester-based polyurethane. Its clarity, high tear strength, and excellent abrasion resistance make it ideal for many applications, including fluid handling systems, fuel and lubricant lines, pneumatic lines, abrasive product transfer, and cable jacketing. It also offers exceptional resistance to oils, greases, fuels, and many other chemicals. This tubing is plasticizer-free and remains flexible even when cycled through extreme temperatures. It resists weathering and can be safely used in temperatures ranging from -100°F (-73°C) to 175°F (79°C).
1
What is this product used for?
- Abrasive and viscous slurry transfer
- Lubrication and degreaser dispensing
- Pellet and powder transfer
- Pneumatic sensory devices
- Instrumentation control lines
- Coolant recovery systems
2
What are the key specifications?
Ester-Based Polyurethane
Ester-Based Polyurethane
None
Clear
175°F (79°C)
-100°F (-73°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Consistently tight dimensional tolerances.
- Excellent abrasion and tear resistance.
- Excellent resistance to oil, fuel, and grease.
- Retains flexibility in sub-zero environments.
- High tear resistance.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Max. Suggested Working Pressure at 175 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 175 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AEM02002 | 1/16" | 1/8" | 1/32" | 3/16" | 70 PSI | 40 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02006 | 1/8" | 3/16" | 1/32" | 1/2" | 45 PSI | 25 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02007 | 1/8" | 1/4" | 1/16" | 5/16" | 74 PSI | 45 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02011 | 3/16" | 1/4" | 1/32" | 1" | 34 PSI | 19 PSI | 29.9 in. Hg | 20.0 in. Hg | 100ft |
| AEM02012 | 3/16" | 5/16" | 1/16" | 5/8" | 56 PSI | 33 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02013 | 3/16" | 3/8" | 3/32" | 7/16" | 70 PSI | 44 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02016 | 1/4" | 5/16" | 1/32" | 1-9/16" | 28 PSI | 12 PSI | 20.0 in. Hg | 5.0 in. Hg | 100ft |
| AEM02017 | 1/4" | 3/8" | 1/16" | 15/16" | 42 PSI | 25 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02018 | 1/4" | 7/16" | 3/32" | 11/16" | 58 PSI | 28 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02019 | 1/4" | 1/2" | 1/8" | 9/16" | 70 PSI | 45 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02022 | 5/16" | 7/16" | 1/16" | 1-15/16" | 36 PSI | 22 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 34 PSI | 19 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02028 | 3/8" | 9/16" | 3/32" | 1-5/16" | 45 PSI | 27 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02029 | 3/8" | 5/8" | 1/8" | 1-1/16" | 54 PSI | 33 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02033 | 7/16" | 5/8" | 3/32" | 1-11/16" | 40 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 49 PSI | 29 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 26 PSI | 14 PSI | 20.0 in. Hg | 5.0 in. Hg | 100ft |
| AEM02037 | 1/2" | 11/16" | 3/32" | 2-1/8" | 36 PSI | 18 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 46 PSI | 27 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02044 | 5/8" | 3/4" | 1/16" | 4-1/8" | 24 PSI | 11 PSI | 10.0 in. Hg | 5.0 in. Hg | 100ft |
| AEM02045 | 5/8" | 13/16" | 3/32" | 3" | 32 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 38 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 100ft |
| AEM02052 | 3/4" | 15/16" | 3/32" | 4" | 26 PSI | 13 PSI | 15.0 in. Hg | 5.0 in. Hg | 100ft |
| AEM02053 | 3/4" | 1" | 1/8" | 3-1/4" | 33 PSI | 20 PSI | 29.9 in. Hg | 25.0 in. Hg | 100ft |
| AEM02062 | 1" | 1-1/4" | 1/8" | 5-1/8" | 28 PSI | 14 PSI | 15.0 in. Hg | 10.0 in. Hg | 100ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® C-210-A Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
