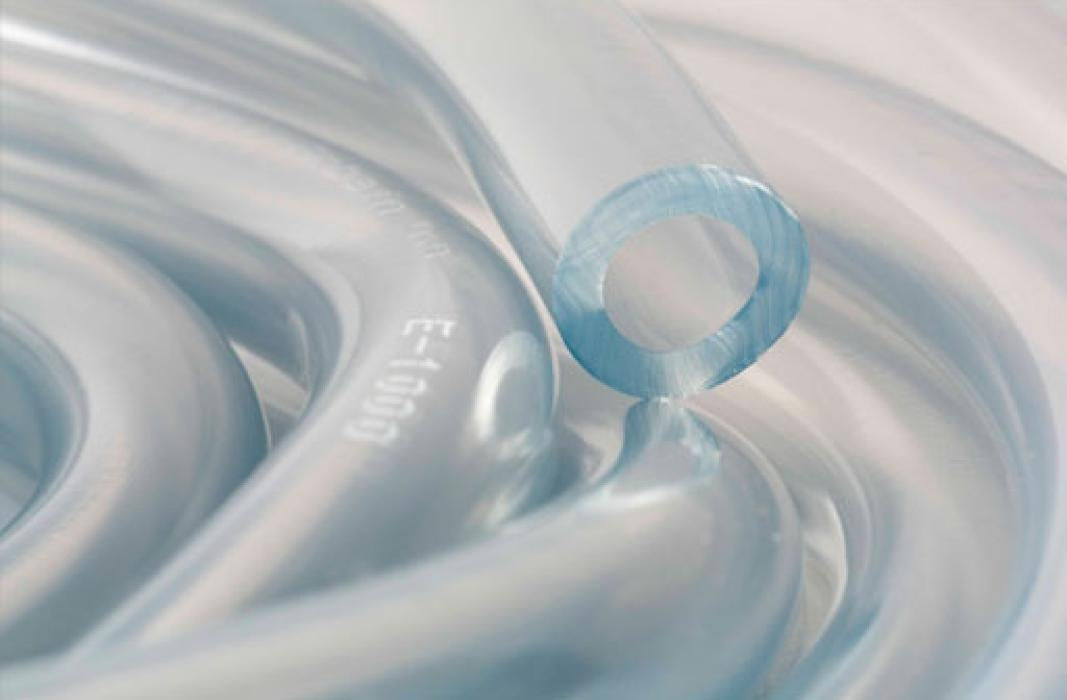

ADK00027 Tygon® by Saint Gobain | E-1000 | Ultra-Soft Laboratory Tubing | 3/8" ID x 1/2" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® E-1000 | Ultra-Soft Laboratory Tubing
Tygon® E-1000 Tubing is an advanced formulation that is softer than other Tygon® tubing and provides an excellent solution to applications requiring complicated laboratory setups with sharp radius curves and multiple directional changes.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $156.62 |
| 20–59 | $141.63 |
| 60+ | $133.30 |
Tygon® E-1000 | Ultra-Soft Laboratory Tubing
Tygon E-1000 ultra-soft tubing resists twisting and collapse, which are common problems when using other tubing products. The clear tubing provides unobstructed visual monitoring of flow and is ideal for lab use with peristaltic pumps, synthesis and research set-ups, transfer of buffer solutions, cryogenic applications, and connection to drain lines.
1
What is this product used for?
- Synthesis and research set ups
- Analytical instruments
- Buffer solutions
- Peristaltic pumps
- Vent and drain lines
2
What are the key specifications?
N/A
N/A
None
Clear
125°F (52°C)
-67°F (-55°C)
Meets FDA requirements for food contact
Not intended as an implant material!
3
What are the main product features?
- Soft and flexible for lab set-ups.
- Flexible at low temperatures.
- Resistant to corrosive chemicals for laboratory applications.
- Low durometer for use in low-torque pump applications.
- Meets FDA requirements for food contact.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ADK00003 | 1/16" | 3/16" | 1/16" | 1/8" | 26 PSI | 29.9 in. Hg | 50ft |
| ADK00007 | 3/8" | 1/4" | 1/16" | 3/8" | 16 PSI | 29.9 in. Hg | 50ft |
| ADK00012 | 3/16" | 5/16" | 1/16" | 5/8" | 10 PSI | 15 in. Hg | 50ft |
| ADK00017 | 1/4" | 3/8" | 1/16" | 1" | 8 PSI | 7 in. Hg | 50ft |
| ADK00019 | 1/4" | 1/2" | 1/8" | 5/8" | 14 PSI | 29.9 in. Hg | 50ft |
| ADK00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 7 PSI | 5 in. Hg | 50ft |
| ADK00027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 7 PSI | 3 in. Hg | 50ft |
| ADK00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 11 PSI | 15 in. Hg | 50ft |
| ADK00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 6 PSI | 2 in. Hg | 50ft |
| ADK00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 8 PSI | 7 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® E-1000 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
