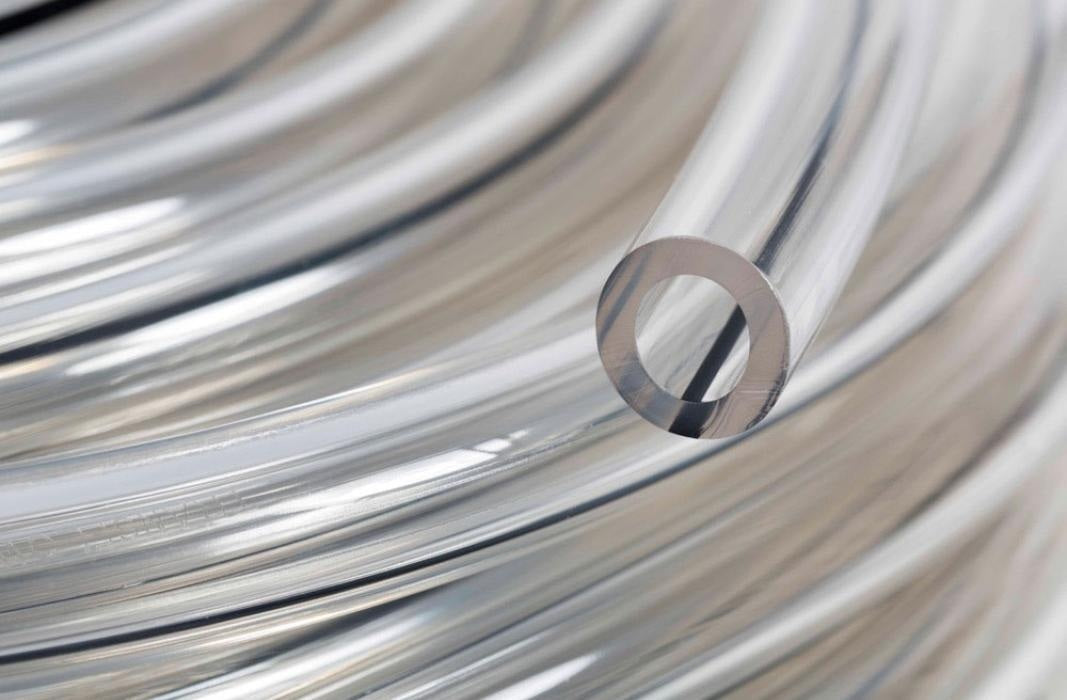

ACR02918 Tygon® by Saint Gobain | A24 | Twin Tube Clear Vacuum Tubing for Milking Equipment | 3/8" ID x 5/8" OD x 1/8" Wall 100' Package Length
Minimum Order Quantity: 16 Units
Saint Gobain
Tygon® A24 | Clear Vacuum Tubing for Milking Equipment
Tygon® A24 tubing from Saint-Gobain is designed specifically for the dairy industry and is ideal for raw milk transport lines and dairy processing.
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $302.54 |
| 30–59 | $273.57 |
| 60+ | $257.48 |
Tygon® A24 | Clear Vacuum Tubing for Milking Equipment
Tygon® A24 tubing from Saint-Gobain is designed specifically for the dairy industry and is ideal for raw milk transport lines and dairy processing. It features a smooth inner surface to help prevent blockages that can restrict airflow, and its clarity allows you to detect potential backflows of milk into the lines – reducing maintenance and inspection concerns. This phthalate-free milk tubing, embedded with Tygon's trademarked black stripe, is made to work with flexible Tygon® M-34-R tubing. When combined, the two products create a vacuum of air that produces a continuous, reliable flow of milk during the milking process.
1
What is this product used for?
- Raw milk transport lines
- Dairy processing
2
What are the key specifications?
N/A
N/A
None
Clear with embedded black stripe
165°F (74°C)
-32°F (-36°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Holds full vacuum at room temperature.
- Will not crack and age like rubber tubing.
- Lightweight and flexible for quick installation.
- Non-wetting properties allow easy cleaning and complete drainage.
- Durability for long and reliable service.
- Contains no BPA or phthalates.
- To be used in conjunction with Tygon® M-34-R tubing.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ACR02019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACR02021 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACR02029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
| ACR02034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 39 PSI | 29.9 in. Hg | 100ft |
| ACR02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 26.0 in. Hg | 100ft |
| Twin Tube | |||||||
| ACR02916 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACR02917 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACR02918 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A24 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
