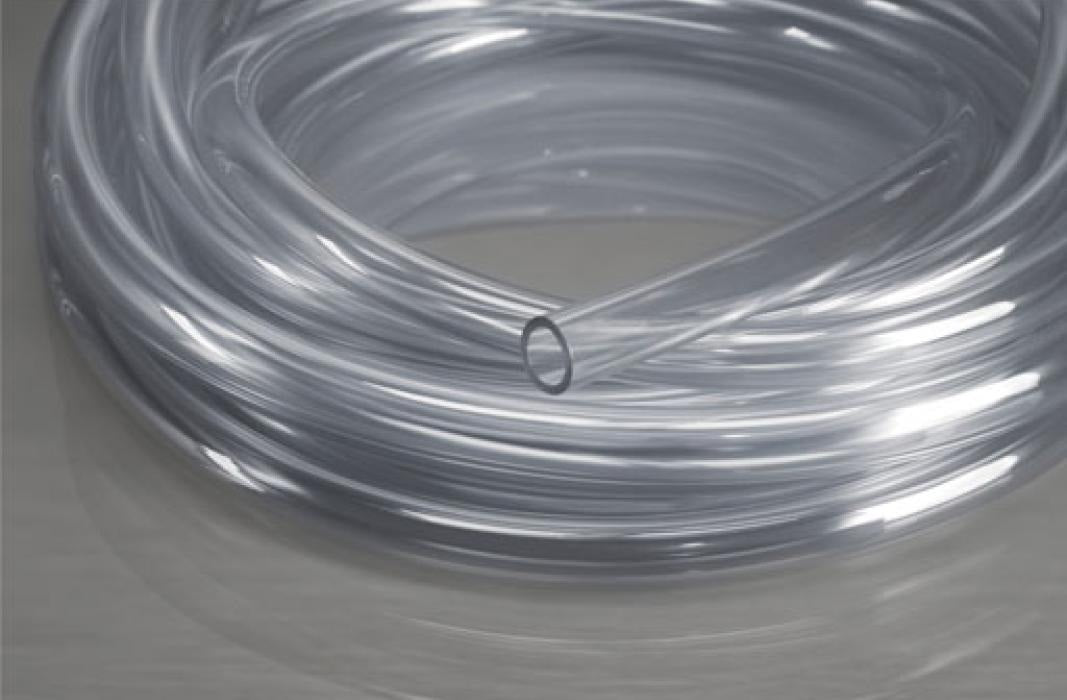

ACF02012 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Tubing | 3/16" ID x 5/16" OD x 1/16" Wall | 100' Package Length
Saint Gobain
Tygon S3™ E-3603 | Non-DEHP Phthalate-Free Laboratory Tubing
Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion.
For instrumentation connection, vent, drain, and other general laboratory applications.
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $143.18 |
| 20–59 | $129.47 |
| 60+ | $121.86 |
Tygon S3™ E-3603 | Flexible Fuel Tubing
Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion. As a tubing for instrumentation connection, vent, drain and other general laboratory applications, Tygon S3™ E-3603 Tubing offers superior life, which minimizes the labor and expense of replacement. It can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi, 121°C) and ethylene oxide.
1
What is this product used for?
- General laboratory connections
- Food & beverage
- Biopharmaceutical analysis
- Analytical instrumentation
- Vacuum pumps
- Ideal for condensers, incubators, desiccators, gas lines and drain lines
2
What are the key specifications?
N/A
N/A
None
Clear
165°F (74°C)
-51°F (-46°C)
US FDA food contact criteria
(EU) 10/2011 and (EC) 1935/2004
Japanese Food Sanitation Law 370/1959
NSF®-51, Food Equipment Materials
USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
REACH (EC) 1907/2006
Not intended as an implant material!
3
What are the main product features?
- Bio-based formulation reduces environmental impact.
- Lot-to-lot consistency for reproducible results.
- Non-toxic and non-contaminating.
- Smooth inner wall.
- Slips easily over fittings and grips securely for simple lab set-ups.
- No BPA or phthalates intentionally added.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI)* |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ACF00001 | 1/32" | 3/32" | 1/32" | 1/8" | 69 PSI | 29.9 in. Hg | 50ft |
| ACF00002 | 1/16" | 1/8" | 1/32" | 1/4" | 36 PSI | 29.9 in. Hg | 50ft |
| ACF02002 | 1/16" | 1/8" | 1/32" | 1/8" | 36 PSI | 29.9 in. Hg | 100ft |
| ACF00003 | 1/16" | 3/16" | 1/16" | 1/8" | 69 PSI | 29.9 in. Hg | 50ft |
| ACF00004 | 3/32" | 5/32" | 1/32" | 3/8" | 25 PSI | 29.9 in. Hg | 50ft |
| ACF02004 | 3/32" | 5/32" | 1/32" | 3/8" | 25 PSI | 29.9 in. Hg | 100ft |
| ACF00005 | 3/32" | 7/32" | 1/16" | 1/4" | 47 PSI | 29.9 in. Hg | 50ft |
| ACF00006 | 1/8" | 3/16" | 1/32" | 1/2" | 20 PSI | 20 in. Hg | 50ft |
| ACF00007 | 1/8" | 1/4" | 1/16" | 3/8" | 36 PSI | 29.9 in. Hg | 50ft |
| ACF02007 | 1/8" | 1/4" | 1/16" | 3/8" | 36 PSI | 29.9 in. Hg | 100ft |
| ACF00009 | 5/32" | 7/32" | 1/32" | 3/8" | 17 PSI | 12 in. Hg | 50ft |
| ACF00010 | 5/32" | 9/32" | 1/16" | 1/2" | 30 PSI | 29.9 in. Hg | 50ft |
| ACF02010 | 5/32" | 9/32" | 1/16" | 1/2" | 30 PSI | 29.9 in. Hg | 100ft |
| ACF00011 | 3/16" | 1/4" | 1/32" | 1" | 14 PSI | 9 in. Hg | 50ft |
| ACF00012 | 3/16" | 5/16" | 1/16" | 5/8" | 25 PSI | 29.9 in. Hg | 50ft |
| ACF02012 | 3/16" | 5/16" | 1/16" | 5/8" | 25 PSI | 29.9 in. Hg | 100ft |
| ACF00013 | 3/16" | 3/8" | 3/32" | 1/2" | 36 PSI | 29.9 in. Hg | 50ft |
| ACF00014 | 3/16" | 7/16" | 1/8" | 3/8" | 47 PSI | 29.9 in. Hg | 50ft |
| ACF00016 | 1/4" | 5/16" | 1/32" | 1-5/8" | 12 PSI | 5 in. Hg | 50ft |
| ACF00017 | 1/4" | 3/8" | 1/16" | 1" | 20 PSI | 20 in. Hg | 50ft |
| ACF02017 | 1/4" | 3/8" | 1/16" | 1" | 20 PSI | 20 in. Hg | 100ft |
| ACF00018 | 1/4" | 7/16" | 3/32" | 3/4" | 28 PSI | 29.9 in. Hg | 50ft |
| ACF00019 | 1/4" | 1/2" | 1/8" | 1/2" | 36 PSI | 29.9 in. Hg | 50ft |
| ACF02019 | 1/4" | 1/2" | 1/8" | 1/2" | 36 PSI | 29.9 in. Hg | 100ft |
| ACF00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 17 PSI | 13 in. Hg | 50ft |
| ACF00023 | 5/16" | 1/2" | 3/32" | 1" | 23 PSI | 29.9 in. Hg | 50ft |
| ACF00024 | 5/16" | 9/16" | 1/8" | 7/8" | 30 PSI | 29.9 in. Hg | 50ft |
| ACF00025 | 5/16" | 5/8" | 5/32" | 3/4" | 36 PSI | 29.9 in. Hg | 50ft |
| ACF00027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 14 PSI | 9 in. Hg | 50ft |
| ACF00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 20 PSI | 21 in. Hg | 50ft |
| ACF00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 25 PSI | 29.9 in. Hg | 50ft |
| ACF00032 | 7/16" | 9/16" | 1/16" | 2-1/4" | 13 PSI | 7 in. Hg | 50ft |
| ACF00033 | 7/16" | 5/8" | 3/32" | 1-3/4" | 18 PSI | 15 in. Hg | 50ft |
| ACF00034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 22 PSI | 28 in. Hg | 50ft |
| ACF00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 12 PSI | 5 in. Hg | 50ft |
| ACF00037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 15 PSI | 12 in. Hg | 50ft |
| ACF02037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 15 PSI | 12 in. Hg | 100ft |
| ACF00038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 20 PSI | 21 in. Hg | 50ft |
| ACF00039 | 1/2" | 13/16" | 5/32" | 1-1/2" | 24 PSI | 29.9 in. Hg | 50ft |
| ACF00041 | 9/16" | 3/4" | 3/32" | 2-1/2" | 14 PSI | 9 in. Hg | 50ft |
| ACF00042 | 9/16" | 13/16" | 1/8" | 2" | 18 PSI | 17 in. Hg | 50ft |
| ACF00045 | 5/8" | 13/16" | 3/32" | 3" | 13 PSI | 7 in. Hg | 50ft |
| ACF00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 17 PSI | 13 in. Hg | 50ft |
| ACF00047 | 5/8" | 15/16" | 5/32" | 2" | 20 PSI | 21 in. Hg | 50ft |
| ACF00050 | 11/16" | 7/8" | 3/32" | 3-1/2" | 12 PSI | 6 in. Hg | 50ft |
| ACF00053 | 3/4" | 1" | 1/8" | 3-1/4" | 14 PSI | 9 in. Hg | 50ft |
| ACF00054 | 3/4" | 1-1/16" | 5/32" | 2-3/4" | 17 PSI | 15 in. Hg | 50ft |
| ACF00055 | 3/4" | 1-1/8" | 3/16" | 2-3/8" | 20 PSI | 21 in. Hg | 50ft |
| ACF00057 | 3/4" | 1-1/4" | 1/4" | 2" | 25 PSI | 29.9 in. Hg | 50ft |
| ACF00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 13 PSI | 7 in. Hg | 50ft |
| ACF00060 | 7/8" | 1-3/16" | 5/32" | 3-1/2" | 15 PSI | 11 in. Hg | 50ft |
| ACF00062 | 1" | 1-1/4" | 1/8" | 4-3/4" | 12 PSI | 5 in. Hg | 50ft |
| ACF00064 | 1" | 1-3/8" | 3/16" | 4" | 16 PSI | 12 in. Hg | 50ft |
| ACF00065 | 1" | 1-1/2" | 1/4" | 3" | 20 PSI | 21 in. Hg | 50ft |
| ACF00068 | 1-1/8" | 1-1/2" | 3/16" | 4-1/2" | 14 PSI | 9 in. Hg | 50ft |
| ACF00069 | 1-1/4" | 1-1/2" | 1/8" | 7-7/8" | 10 PSI | 3 in. Hg | 50ft |
| ACF00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 13 PSI | 7 in. Hg | 50ft |
| ACF00073 | 1-1/2" | 1-7/8" | 3/16" | 7-1/4" | 12 PSI | 5 in. Hg | 50ft |
| ACF00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 14 PSI | 9 in. Hg | 50ft |
| ACF00076 | 1-3/4" | 2-1/4" | 1/4" | 7-1/2" | 13 PSI | 7 in. Hg | 50ft |
| ACF00078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 12 PSI | 5 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon S3™ E-3603 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
