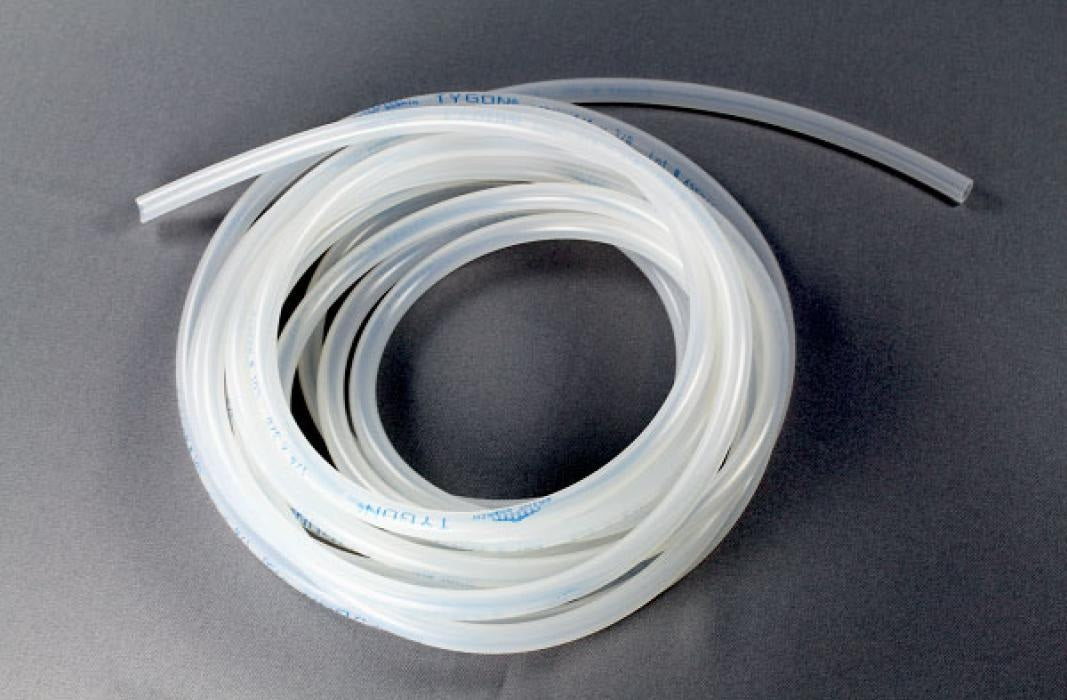

ABW69NSF Tygon® by Saint Gobain | SPT-3350 | Silicone Food & Beverage Transfer Tubing | 1-1/4" ID x 1-1/2" OD x 1/8" Wall | Old Part #: ABW00069 | 50' Package Length
Minimum Order Quantity: 10 Units
Saint Gobain
Tygon® SPT-3350 | Silicone Food & Beverage Transfer Tubing
Tygon® SPT-3350 silicone tubing is produced from a platinum curing process to meet the most demanding requirements of food and beverage sanitary standards.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,159.34 |
| 8–14 | $1,110.01 |
| 15+ | $986.67 |
Tygon® SPT-3350 | Silicone Food & Beverage Transfer Tubing
Tygon® SPT-3350 tubing from Saint-Gobain is ideal for food and beverage dispensing. It is up to three times smoother than other silicone tubing, which reduces extractable content and the risk of particle entrapment, as well as microscopic build-up during fluid transfer – helping to maintain the integrity of the transported food and beverage media. This tubing’s smooth inner surface improves fluid flow by reducing its surface area and, even after repeated use, helps completely clean sanitize the fluid transfer system.
1
What is this product used for?
- Automatic water sampling equipment
2
What are the key specifications?
Silicone
Silicone
None
Translucent
400°F (204°C)
-112°F (-80°C)
FDA 21 CFR 175.300
NSF® 51 Certification
Not intended as an implant material!
3
What are the main product features?
- Ultra-smooth inner bore reduces potential for particle entrapment.
- Minimal extractable help maintain fluid integrity.
- Excellent fluid flow characteristics.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter |
Outside Diameter |
Wall Thickness |
Length | Min. Bend Radius |
Max. Working Pressure |
Vacuum Rating |
||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (in.) | (in.) | (in.) | 73° F (PSI) |
320° F (PSI) |
inHg at 73° F |
inHg at 320° F |
||
| ABW01NSF | 1/32" | 3/32" | 1/32" | 50ft | 1/2" | 22 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW02NSF | 1/16" | 1/8" | 1/32" | 50ft | 1/4" | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW03NSF | 1/16" | 3/16" | 1/16" | 50ft | 1/4" | 22 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW04NSF | 3/32" | 5/32" | 1/32" | 50ft | 1/4" | 11 PSI | 10 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW05NSF | 3/32" | 7/32" | 1/16" | 50ft | 1/4" | 18 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW06NSF | 1/8" | 3/16" | 1/32" | 50ft | 3/8" | 9 PSI | 8 PSI | 20.0 in. Hg | 15.0 in. Hg |
| ABW07NSF | 1/8" | 1/4" | 1/16" | 50ft | 1/2" | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW09NSF | 5/32" | 7/32" | 1/32" | 50ft | 3/4" | 7 PSI | 6 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW11NSF | 3/16" | 1/4" | 1/32" | 50ft | 1" | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW12NSF | 3/16" | 5/16" | 1/16" | 50ft | 1/2" | 11 PSI | 10 PSI | 25.0 in. Hg | 25.0 in. Hg |
| ABW13NSF | 3/16" | 3/8" | 3/32" | 50ft | 3/8" | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW14NSF | 3/16" | 7/6" | 1/8" | 50ft | 3/8" | 18 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW16NSF | 1/4" | 5/16" | 1/32" | 50ft | 1-1/2" | 5 PSI | 4 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW17NSF | 1/4" | 3/8" | 1/16" | 50ft | 3/4" | 9 PSI | 8 PSI | 15.0 in. Hg | 15.0 in. Hg |
| ABW18NSF | 1/4" | 7/16" | 3/32" | 50ft | 5/8" | 12 PSI | 11 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW19NSF | 1/4" | 1/2" | 1/8" | 50ft | 5/8" | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW22NSF | 5/16" | 7/16" | 1/16" | 50ft | 1-1/4" | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW23NSF | 5/16" | 1/2" | 3/32" | 50ft | 5/8" | 10 PSI | 9 PSI | 20.0 in. Hg | 20.0 in. Hg |
| ABW27NSF | 3/8" | 1/2" | 1/16" | 50ft | 1-1/2" | 9 PSI | 8 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW28NSF | 3/8" | 9/16" | 3/32" | 50ft | 1" | 11 PSI | 10 PSI | 20.0 in. Hg | 15.0 in. Hg |
| ABW29NSF | 3/8" | 5/8" | 1/8" | 50ft | 1" | 12 PSI | 11 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW32NSF | 7/16" | 9/16" | 1/16" | 50ft | 1-1/2" | 4 PSI | 3 PSI | 2.0 in. Hg | 2.0 in. Hg |
| ABW33NSF | 7/16" | 5/8" | 3/32" | 50ft | 1-3/4" | 8 PSI | 7 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW36NSF | 1/2" | 5/8" | 1/16" | 50ft | 3" | 5 PSI | 4 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW37NSF | 1/2" | 11/16" | 3/32" | 50ft | 1-3/4" | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW38NSF | 1/2" | 3/4" | 1/8" | 50ft | 1-1/2" | 9 PSI | 8 PSI | 15.0 in. Hg | 15.0 in. Hg |
| ABW45NSF | 5/8" | 13./16" | 3/32" | 50ft | 3" | 6 PSI | 5 PSI | 5.0 in. Hg | 0.0 in. Hg |
| ABW46NSF | 5/8" | 7/8" | 1/8" | 50ft | 2-1/2" | 7 PSI | 6 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW53NSF | 3/4" | 1" | 1/8" | 50ft | 2-1/2" | 7 PSI | 6 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW62NSF | 1" | 1-1/4" | 1/8" | 50ft | 5" | 5 PSI | 4 PSI | 0.0 in. Hg | 0.0 in. Hg |
| ABW69NSF | 1-1/4" | 1-1/2" | 1/8" | 50ft | 6" | 5 PSI | 4 PSI | 0.0 in. Hg | 0.0 in. Hg |
| ABW74NSF | 1-1/2" | 2" | 1/4" | 50ft | 7" | 6 PSI | 5 PSI | 1.0 in. Hg | 1.0 in. Hg |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® SPT-3350 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
