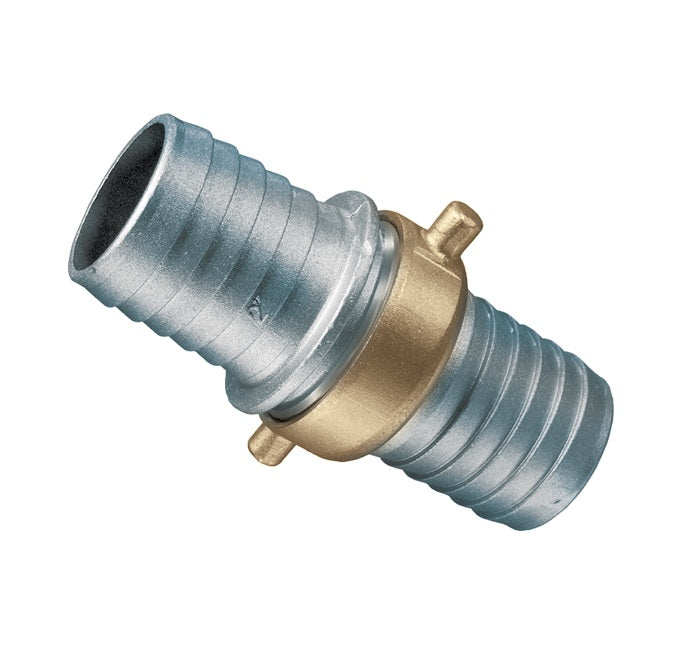

AB400 by Kuriyama | AB Series | Pin Lug Coupling | Complete Set | NPSM Threads | 4" Hose Barb x 4" Hose Barb | Aluminum with Brass Swivel Nut

AB400 by Kuriyama | AB Series | Pin Lug Coupling | Complete Set | NPSM Threads | 4" Hose Barb x 4" Hose Barb | Aluminum with Brass Swivel Nut

Sale price$76.03

Kuriyama of America Inc.
AB Series | Pin Lug Hose Shank Coupling | Complete Set | NPSM Threads | Hose Barb x Hose Barb | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.
Buy More, Save More!
Quantity Price Each
5–19 $71.47
20–59 $64.63
60+ $57.02
Discounts applied in cart/checkout.

What are the Features?

  • Versatile threaded hose connectors designed for suction and discharge applications.
  • Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
  • Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.

What are the Materials?

  • ASTM B85 Grade 383 aluminum alloy. (2 1/2", 6" sizes)
  • ASTM B108-92 356 aluminum alloy. (1 1/2", 2", 3", 4" sizes)
  • ASTM B283 Grade 37700 brass alloy. (1 1/2", 2", 3", 4" sizes)
  • ASTM B584 Grade C85700 brass alloy. (4", 6" sizes)
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
AB150 1-1/2" 75 PSI 0.56 lbs
AB200 2" 75 PSI 0.88 lbs
AB250 2-1/2" 50 PSI 1.34 lbs
AB300 3" 50 PSI 2.70 lbs
AB400 4" 50 PSI 4.42 lbs
AB600 6" 25 PSI 8.30 lbs

Product Data:

Series:
  • AB Series
MAWP:

50

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
