Tygon® Power F-4040-A | Fuel and Lubricant Tubing
Tygon® Power F-4040-A tubing from Saint-Gobain resists the swelling and hardening caused by hydrocarbon-based fluids – significantly reducing the risk of failure due to cracks and leaks.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $153.46 |
| 20–59 | $138.76 |
| 60+ | $130.60 |

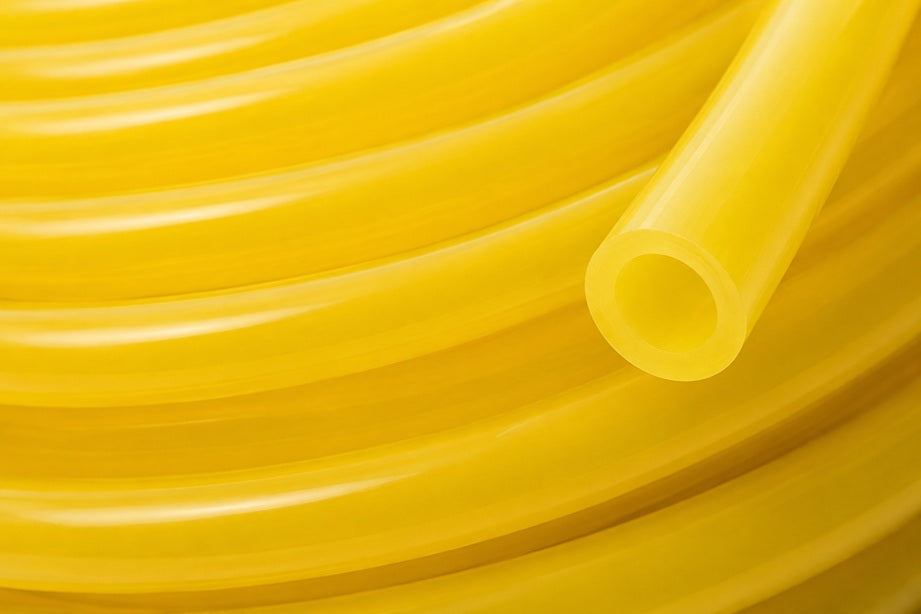

Tygon® Power F-4040-A Tubing
Specifically designed to handle most fuels and industrial lubricants. Tygon® Power F-4040-A tubing is the most requested fuel and lubricant tubing for a variety of applications – from small engine fuel lines to coolant transfer.
1
What is this product used for?
- Small engine fuel lines
- General automotive
- Recreational vehicles
- Lawn and garden equipment
- Coolant transfer
- Heating fuels
- Cutting compounds
- Polishing equipment
- Lubrication lines
2
What are the key specifications?
N/A
N/A
None
Yellow
165°F (74°C)
-35°F (-37°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Resists embrittlement
- Compatible with most hydrocarbons
- Resistant to swelling
- Highly flexible, easy to install
- Specifically developed for fuels and lubricants
- Ozone and UV light resistant
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AAG00700 | .080" | .140" | .030" | 1/4" | 40 PSI | 29.9 in. Hg | 50ft |
| AAG00165 | 3/32" | 3/16" | 3/64" | 1/4" | 50 PSI | 29.9 in. Hg | 50ft |
| AAG00007 | 1/8" | 1/4" | 1/16" | 3/8" | 50 PSI | 29.9 in. Hg | 50ft |
| AAG00012 | 3/16" | 5/16" | 1/16" | 5/8" | 35 PSI | 29.9 in. Hg | 50ft |
| AAG00017 | 1/4" | 3/8" | 1/16" | 1" | 30 PSI | 22.0 in. Hg | 50ft |
| AAG00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 25 PSI | 14.0 in. Hg | 50ft |
| AAG00027 | 3/8" | 1/2" | 1/16" | 1-7/8" | 20 PSI | 10.0 in. Hg | 50ft |
| AAG00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 35 PSI | 29.9 in. Hg | 50ft |
| AAG00032 | 7/16" | 9/16" | 1/16" | 2-3/8" | 15 PSI | 7.0 in. Hg | 50ft |
| AAG00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 15 PSI | 5.0 in. Hg | 50ft |
| AAG00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 30 PSI | 22.0 in. Hg | 50ft |
| AAG00046 | 5/8" | 7/8" | 1/8" | 2-1/2" | 25 PSI | 14.0 in. Hg | 50ft |
| AAG00053 | 3/4" | 1" | 1/8" | 3-1/4" | 20 PSI | 10.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® Power F-4040-A Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
